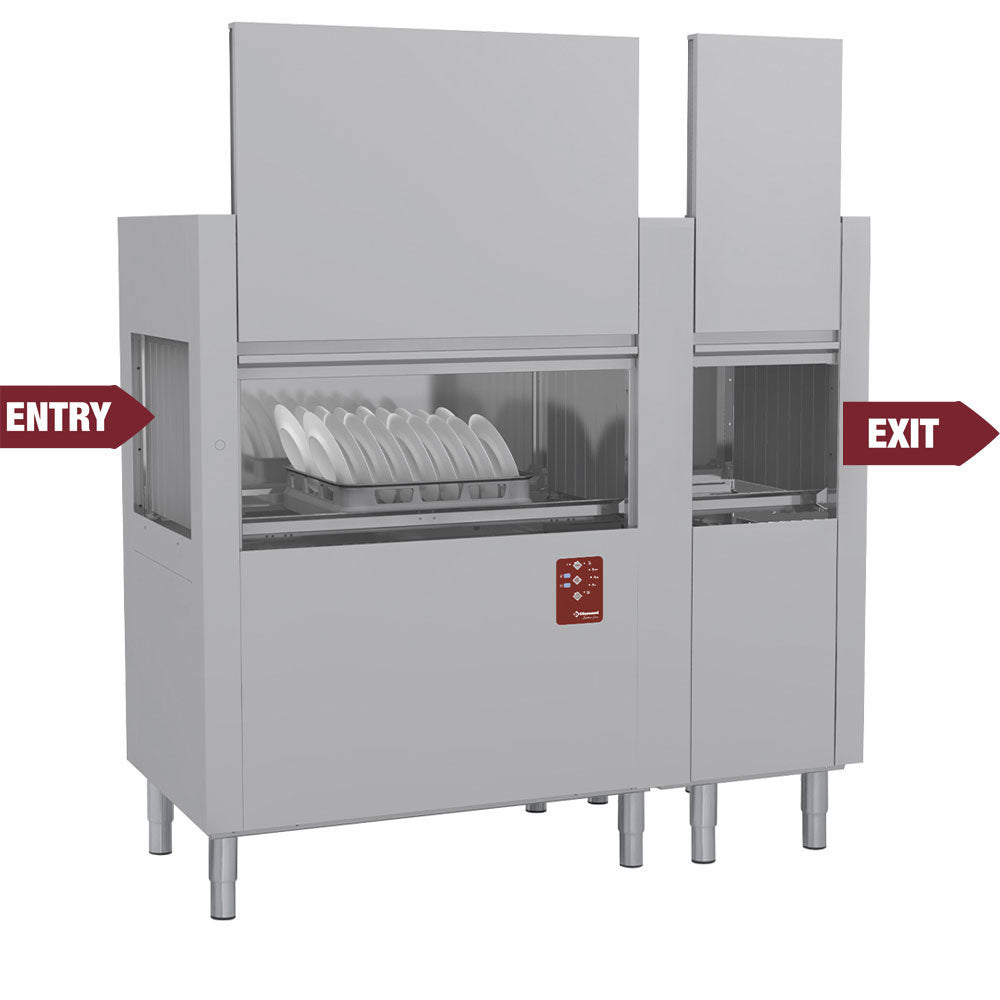

Diamond Rack conveyor dishwasher 200Bas/H - DATIC20E/7

Product Specification

• Production capacity 200 baskets/hour
• Washing + rinsing
• 3 forward speeds
• Predisposed for left-hand entry
• Load height 440 mm
• Anti-pollution device type AB "Break Tank"
• Flushing pump as standard (atmospheric boiler).
• Made of AISI 304 stainless steel, between 12/10 mm and
• 30/10 mm thick, double-walled for better insulationthermal and acoustic (- 60 db), adjustable stainless steel feet.
• Linear or angular layout with left or right input.
• Traction system with parallel bars made of steel
• stainless steel.
• Automatic advancement of the trays.
• Possibility to work continuously or basket by basket, washing
• timed.
• Wide doors, easy opening, thanks to the "counterbalanced" system, equipped with a stop in open position, for access to the inside of the machine.
• Water curtains at the inlet and outlet (standard)
• Deep-drawn tanks, rounded corners, with resistors for temperature maintenance.
• Integral extractable filters, in stainless steel AISI 304, above
• of the tanks.
• Automatic levelling of water in the tanks.
• Rinsing saver to reduce the consumption of water and rinsing agent
• Stainless steel washing and rinsing arms, removable and interchangeable without tools.
• Washing, pre-washing and rinsing pump (double flow), placed in inclined position "self draining", equipped with a stainless steel filter.
• Boiler in stainless steel, with thermal insulation.
• Thermostat to control the boiler temperature at 90°C.
• "Thermocontrol" device ensuring rinsing at a temperature of 85°C.
• Digital "soft touch" control panel, waterproof with display of tank and boiler temperature, self-diagnosis in case of anomalies.
• Built-in USB port (on the electronic board)
• Length (mm) 1700
• Width (mm) 770
• Height (mm) 1615
• Volume (m3) 3.8
