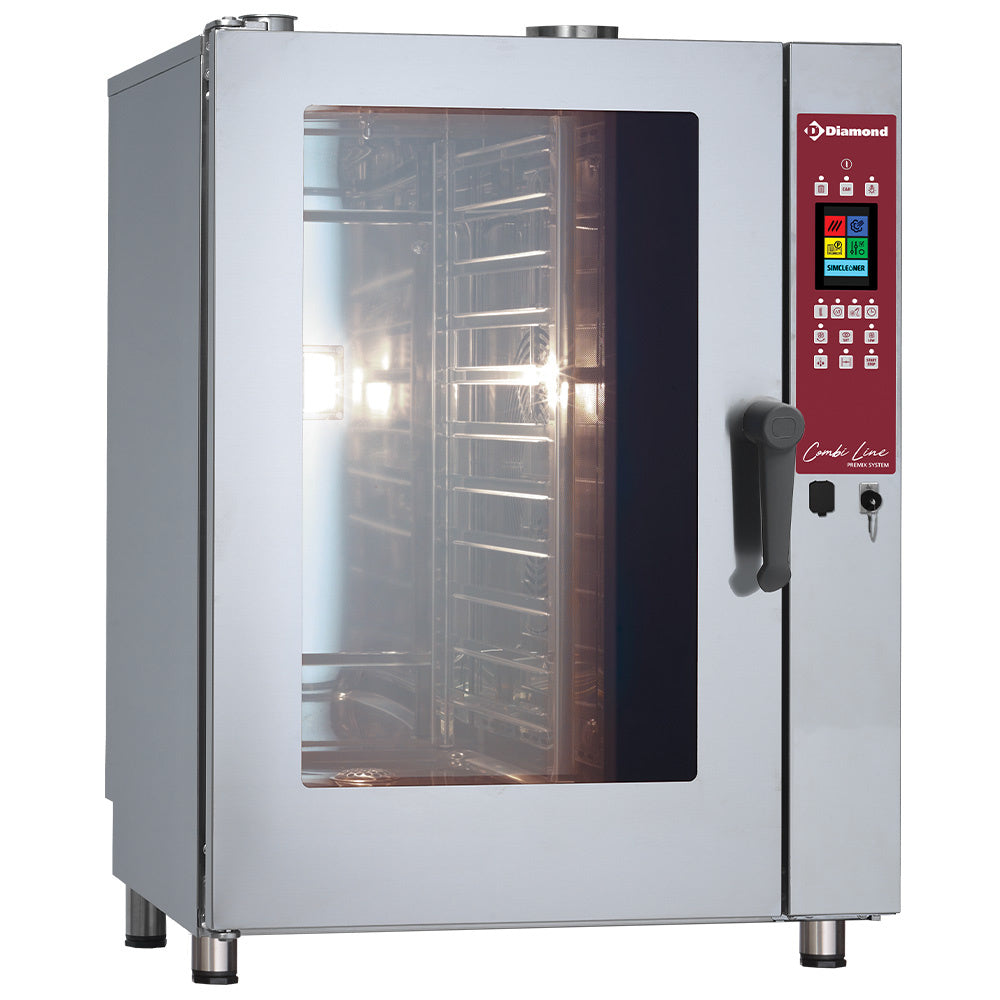

Diamond Gas oven TOUCH SCREEN steam/convection, 11x GN 1/1 - AUTO-CLEANING - DGV-1111/PTS

Product Specification

• Control panel TOUCH SCREEN
• Integrated washing system AUTO-CLEANING
• LENGTHWISE" furnace GN 1/3, 1/2, 2/3 and 1/1 plate loading
• Standard supplied with 2 GN 1/1 grids.
• Compact, space-saving ovens.
• Direct steam generation through "nebulization".
• Convection heating: by a gas burner (PREMIX SYSTEM) placed in the room, behind the turbine deflector.
• Turbine (s) with "Autoreverse" device (made of AISI 316 stainless steel).
• Deep loading, spacing 67 mm.
• Easy after-sales service, access to controls on the lateral part.
• Quarterlight of the turbine on hinges, easy maintenance.
• Chamber made of stainless steel AISI 304 fully welded, rounded corners, predisposed for grease filter.
• Built-in condensate bowl (on the door), connected directly to the discharge.
• Halogen lamp.
• Door with thermal double glazing, indoor glass on hinges, easy cleaning.
• Magnetic microdoor.
• AUTO CLEANING, with dosing pump washing product and dosing pump liquid rinse product.
• Entirely made of AISI 304 stainless steel.
• Manufactured in line with the standards (CE) in force.
• Length (mm) 797
• Width (mm) 788
• Height (mm) 1098
• Volume (m3) 0.96
