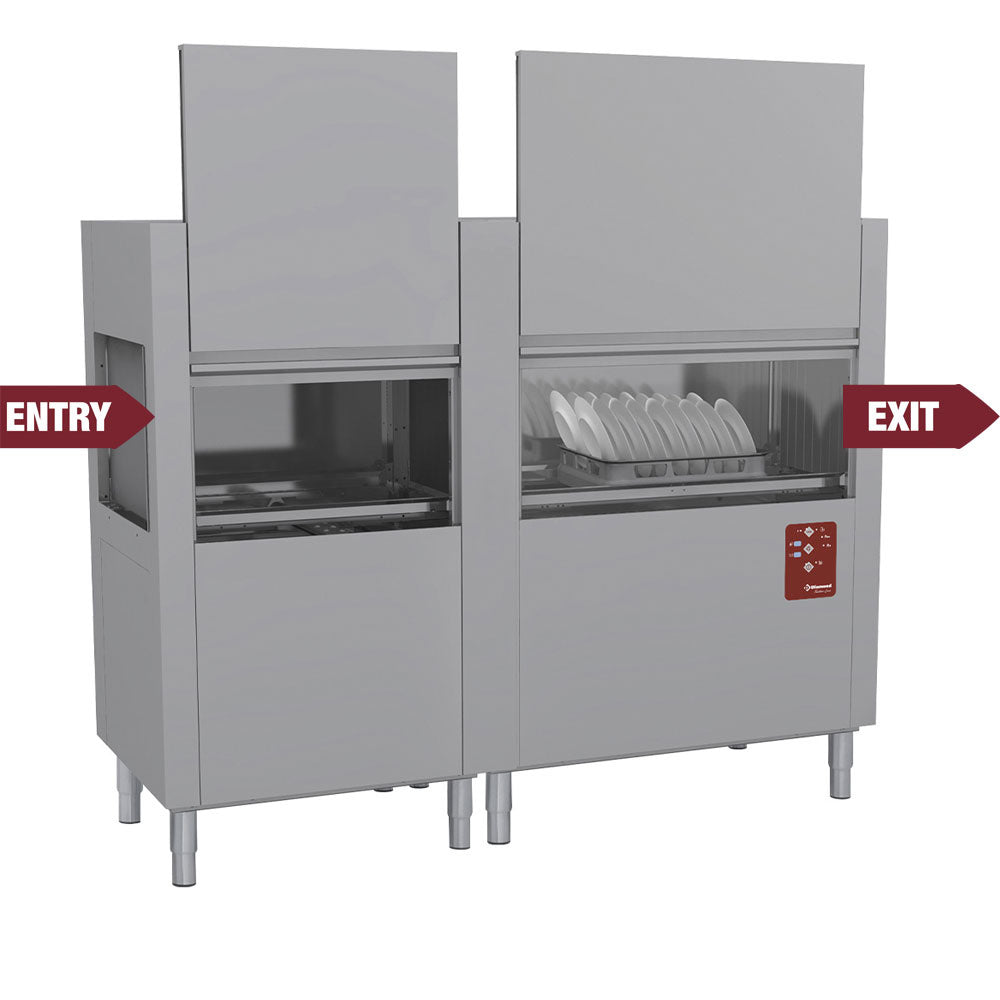

Diamond Rack conveyor dishwasher 200Bas/H - D160E/7

Product Specification

• Production capacity 200 baskets/hour
• Pre-wash + Washing + rinsing
• 2 forward speeds
• Predisposed for left-hand entry
• Load height 440 mm
• Water pressure reducer, equipped with pressure gauge.
• Made in AISI 304 Stainless Steel, of 12/10mm and 30/10mm thick, double skin thermal and acoustic insulation (-60db) with adjustable stainless steel feet.
• Linear or angular configuration with left and right entry/feed tables
• Traction system with parallel stainless steel bars.
• Automatic advance system with 3 speeds.
• Ability to perform a continuous, basket-by-basket or delayed wash.
• "Reversible" traction system, right left entry.
• Counter balanced wide opening doors with stop in open position, for easy access to machine interior.
• Entry and exit water curtains.
• Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
• Integrated, extractable filters, made in AISI 304 stainless steel situated above tanks.
• Automatic refill of tank water levels.
• Rinse Saver, reduces water and rinse aid consumption.
• Demountable stainless steel wash and rinse arm serviceable without the use of tools.
• Wash and pre-wash pump, in inclined position "auto empty" with stainless steel filter.
• Water entry equipped with pressure reduction system.
• Stainless steel boiler, with thermal insulation.
• 90°C thermostatic control.
• Waterproof "soft touch" digital control panel with tank and boiler temperature display, malfunctions automatically diagnosed.
• Length (mm) 1968
• Width (mm) 770
• Height (mm) 1615
• Volume (m3) 3.8
