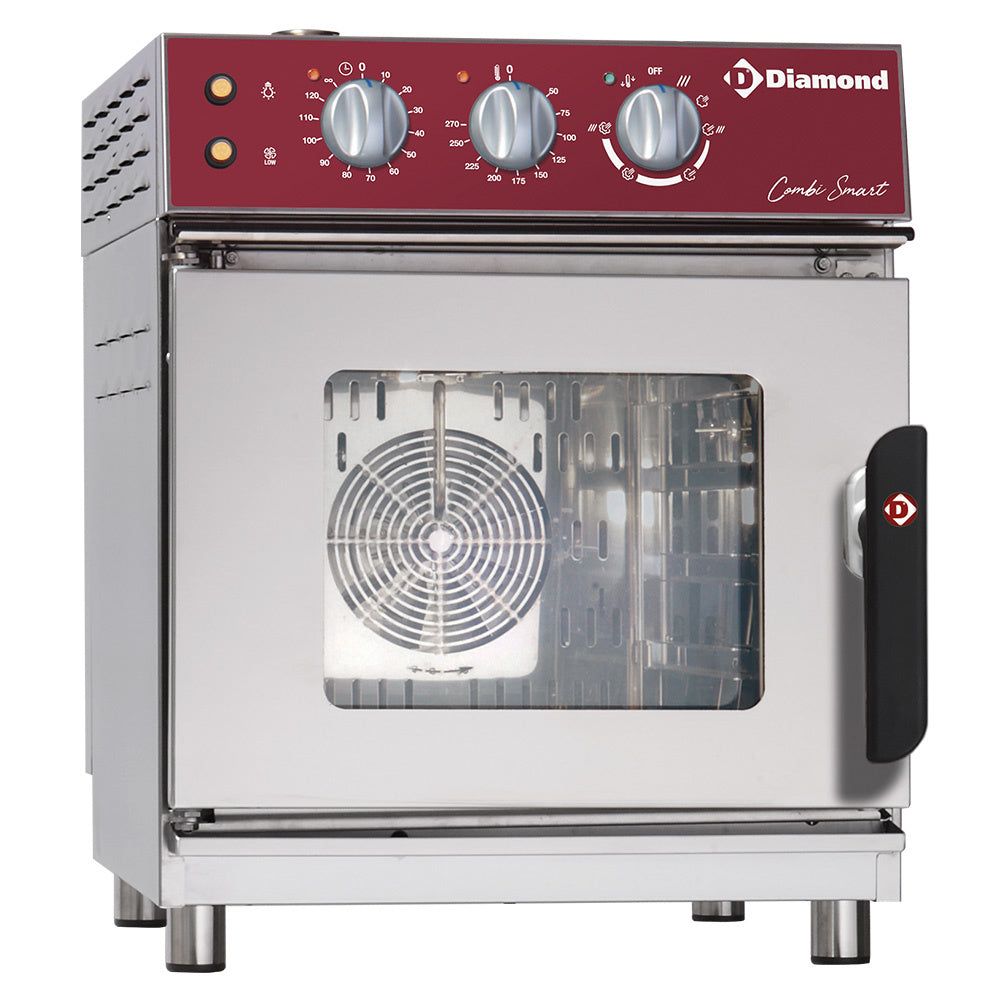

Diamond Electric oven, steam/convection, 4x GN2/3 mechanical - FVS-423

Product Specification

• 4x GN2/3 (353x325 mm)
• Standard supplied with 1 grid GN 2/3.
• 1 Turbine "autorevers"
• Heating by stainless steel armoured resistance(s), placed behind the deflector and "direct" steam by "nebulisation".
• Depth loading, GN plates 1/3 - 1/2 - 2/3 - 1/1, removable plate holder structure, 67 mm spacing.
• Easy after-sales service, front access.
• Baking chamber in AISI 304 stainless steel, rounded corners and corners (easy maintenance), deep-drawn bottom with discharge.
• Integrated condensate collection tray (on the door), directly connected to the discharge.
• Internal allogenic light.
• Door with thermal double glazing (reversible), "ventilated" air space between the panes of glass, allowing the cooling of the outer glass, hinged inner glass (easy maintenance).
• Automatic door closing, ergonomic and athermic handle, gasket (removable) placed in the counter door.
• Microswitch, for stopping the fan(s) when the door is opened
• Safety thermostat.
• "Releasing valve" for the evacuation of smoke and vapour.
• External construction in AISI 430 stainless steel, with adjustable feet.
• Length (mm) 523
• Width (mm) 666
• Height (mm) 667
• Volume (m3) 0.42
