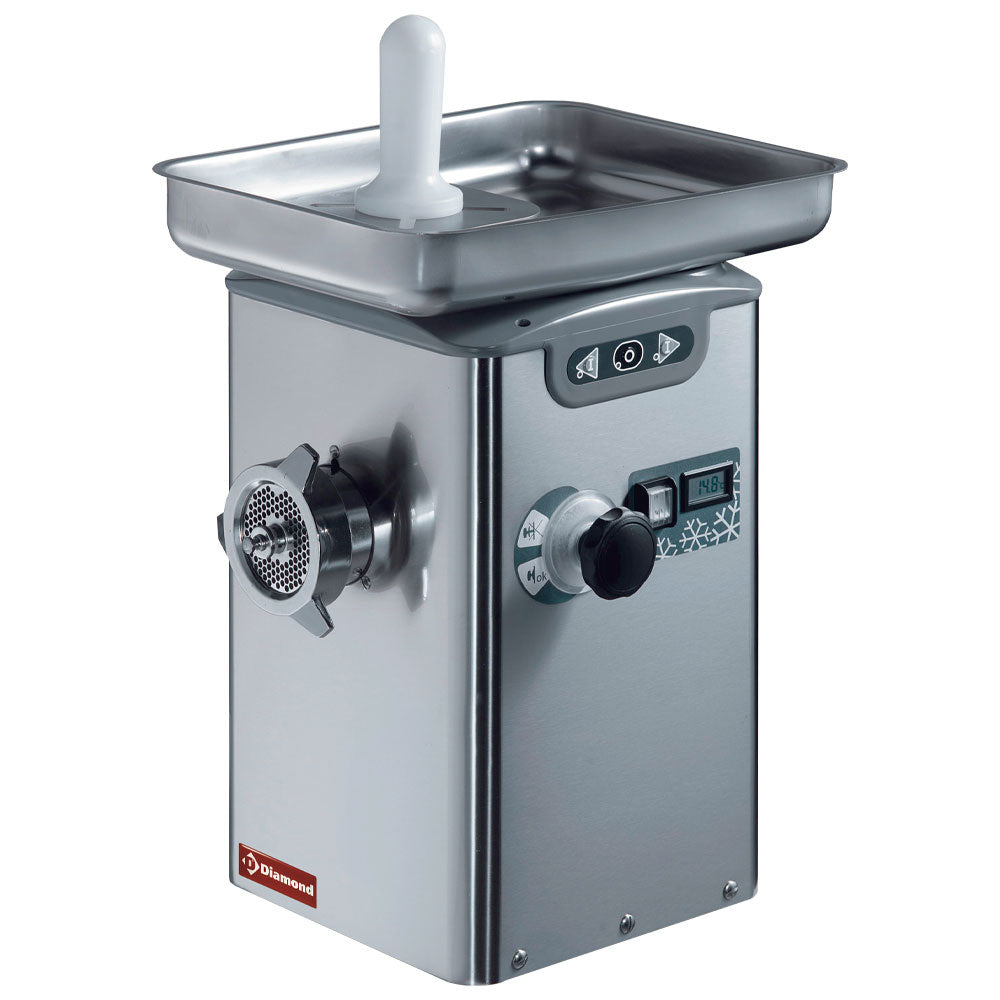

Diamond Refrigerated meat mincer N°22, stainless steel construction - TC22/ICE

Product Specification

• - Output: 350 kg/h.- Standard: 4.5 mm plate and stainless steel knife.
• - Extremely compact, innovative Refrigerated Mincer. - Reliable, powerful and quiet operation machine, AISI 304 stainless steel construction.- Exclusive refrigerating system featuring a thermo-electric module (70 Watt) "Peltier system" (no compressor, no gas), energy saver, refrigeration on barrel and conduct.- HVAC service is not required.- Self-controlled temperature, 24° C maximum working environment temperature, digital control thermometer.- Easy cleaning, removable feed hopper.- Low-voltage 24V controls, with reverse operation, protection class (IP54), NVR (No-Voltage Release) preventing unintentional starting. - Fan-cooled and powerful motor (for high-production yield), equipped with a thermal relay.- Hermetic gearbox in oil-bath with a double insulation to prevent liquids from penetrating through.- AISI 304 stainless steel barrel and worm, sturdy and reliable barrel fixing mechanism.- Wide, removable feed-hopper, with a dedicated compartment underneath to store plates and knives.- Machine complying with the current CE standards.
• Length (mm) 310
• Width (mm) 350
• Height (mm) 615
• Volume (m3) 0.18
