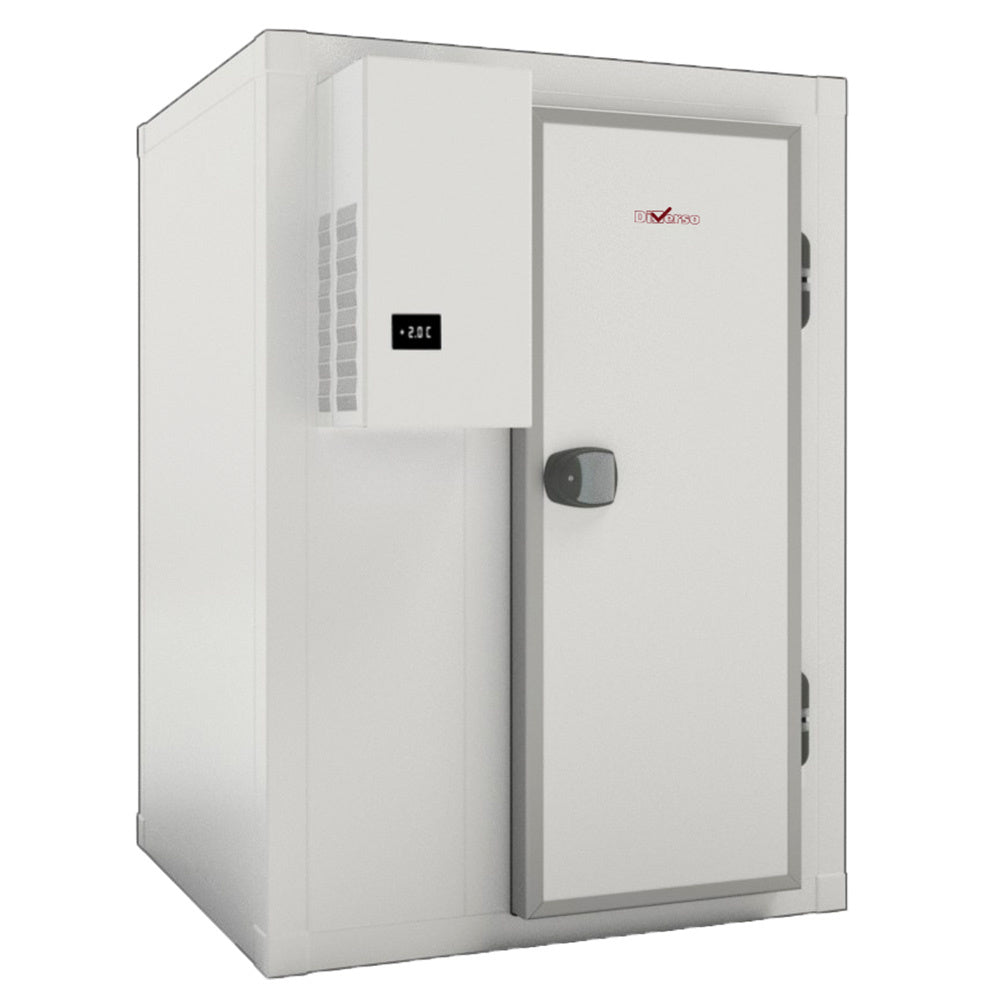

Diamond Room ISO 80 with group, int. dim. 1830 x 1630 x h2030mm (6,06m³) - WR-Z2020-8U

Product Specification

• Room supplied with a monoblock refrigeration unit.
• Internal dimensions 1430 x 1230 x h 2030 mm
• Internal volume 4.07 m³
• Door passage usable 700 x h 1900 mm.
• Room: wall, floor, and ceiling thickness of 60 mm, modulation with panels ranging from 200 to 1200 mm in width (200+200+200...)
• Panels made of white lacquered galvanized steel, "non-toxic and scratch-resistant"
• High-density injected polyurethane insulation (43 kg/m³), eco-friendly (CFC-free)
• Panels locked with incorporated "eccentric" hooks
• Reinforced 12 mm plywood floor, covered with a "honeycomb" anti-slip phenolic resin, capable of supporting a load of 4000 kg/m² (140 kg point load).
• 90° angular profiles equipped with specific end caps, also insulated with polyurethane (50 kg/m³) to prevent any potential thermal bridges
• The corners and edges of the floor, ceiling, and walls are all rounded (R15 mm) and also insulated with polyurethane (50 kg/m³)
• Swinging door with a thickness of 60 mm, also insulated with polyurethane (43 kg/m³), with hinges on the right, highly robust, reinforced with an anodized aluminum frame, equipped with a magnetic EPDM gasket with "pressure" (easy replacement without tools), adjustable rising hinges and a 100° stop, exterior handle with key lock, interior closure with a safety device.
• Unit: Overlapping type.
• Automatic defrosting with condensate auto-evaporation.
• Refrigerant R452a.
• Electronic regulation, digital display.
• Equipment built in compliance with applicable (CE) standards.
• Length (mm) 1990
• Width (mm) 1790
• Height (mm) 2190
• Volume (m3) 3.89
