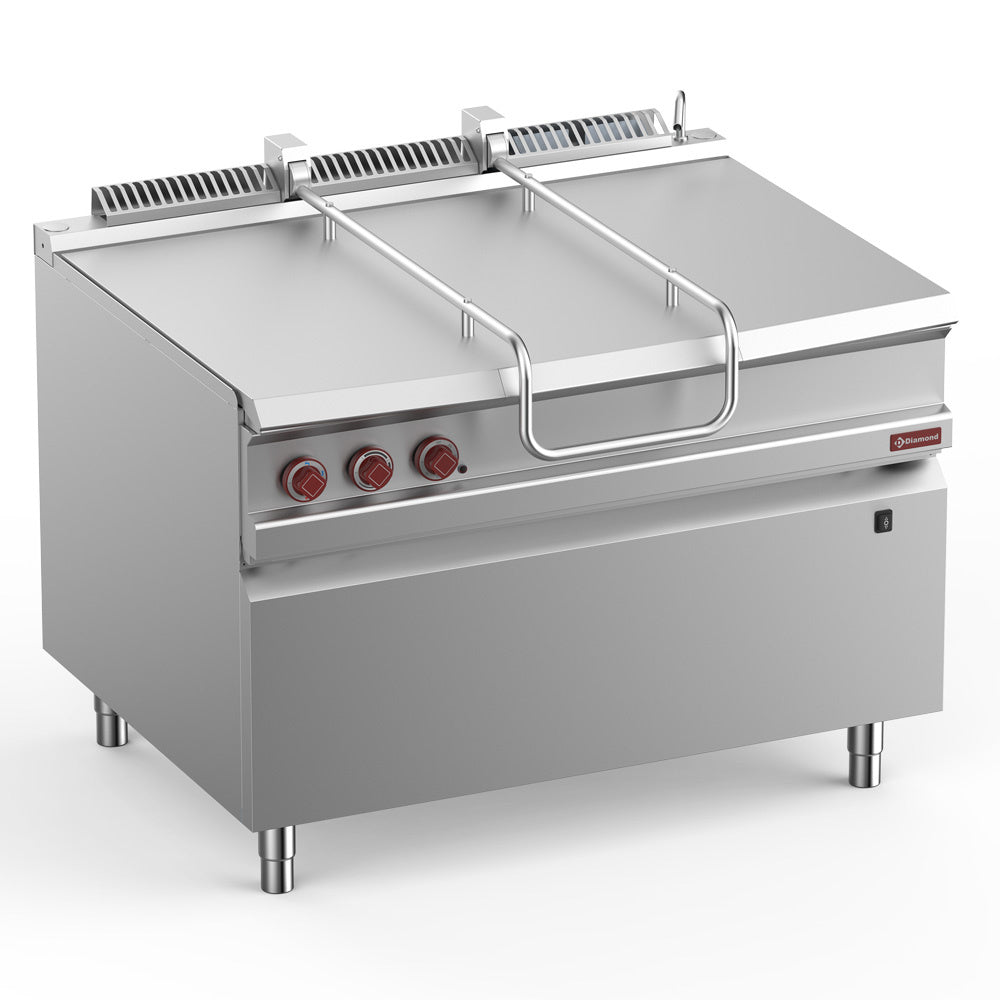

Diamond Tilting gas bratt pan, stainless steel tank 120 liters, on cupboard - G9/BRI12-N

Product Specification

• Tank dimensions 1013x660xh245 mm, surface area of 66 dm2.
• Electric tilting of the tank.
• Made in stainless steel AISI 304, adjustable feet in stainless steel.
• Top (20/10 mm) in stainless steel AISI 304.
• Chimney in the back in stainless steel AISI 304.
• The "stamped" cover of the tank is on hinges with "torsion spring" in stainless steel, allowing a gradual closing and opening, provided with an ergonomic front handle.
• Tilting tank made of stainless steel AISI 304 thickness (13 mm) with high thermal conductivity, corners with rounded interior angles for easy and hygienic maintenance.
• Gas heating, by burners in stainless steel with stabilized flame, regulation from 90 to 300°C (uniform temperature on the bottom of the tank).
• Electronic ignition with ignition candle and safety devices, front accessibility allowing for very easy maintenance.
• Safety device for interruption of operation during the ascent of the series tank. A water tap to fill the tank is attached to the upper top, the opening is done by a valve positioned on the front of the device.
• Length (mm) 1200
• Width (mm) 900
• Height (mm) 850(920)
• Volume (m3) 1.3
