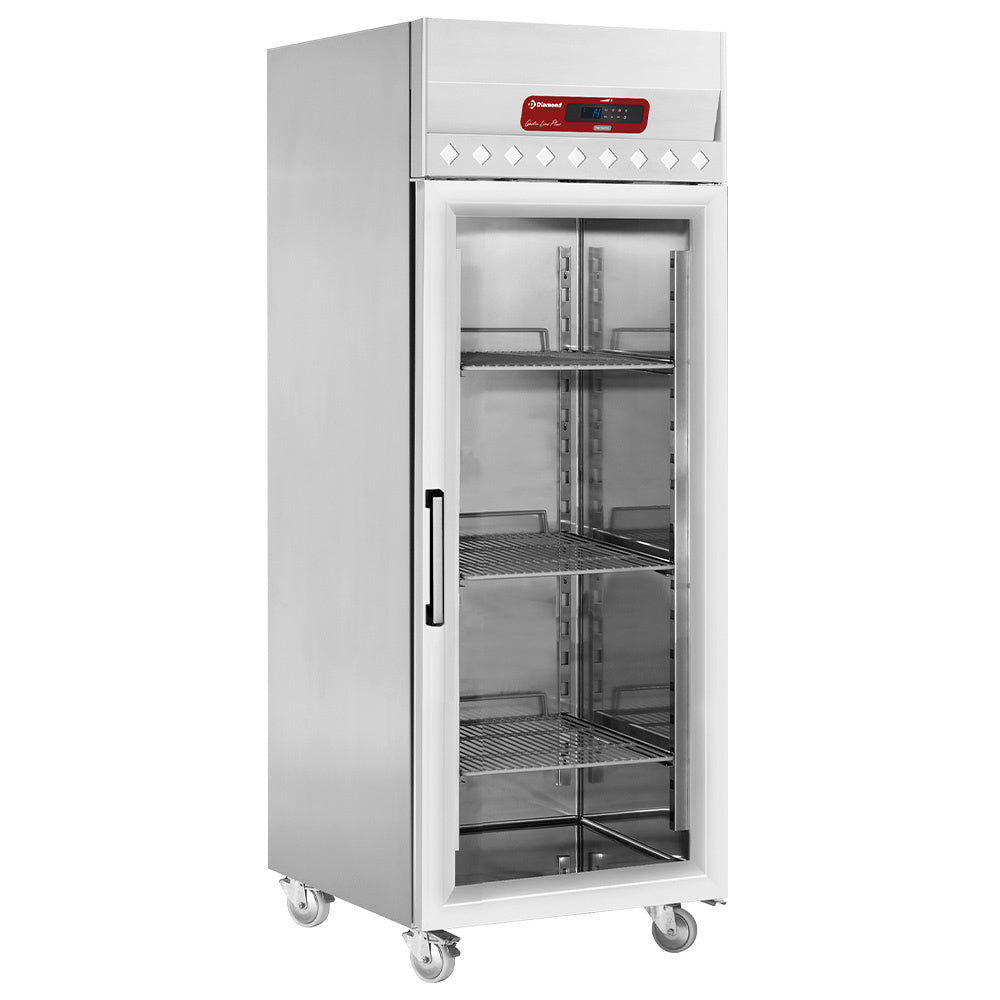

Diamond Ventilated refrigerator 700 liters, 1 glass door (GN 2/1) - ID70G/EL

Product Specification

• Included: 3 grids GN 2/1 (530x650 mm).
• Refrigerant R134A.
• Series reversible door
• 4 adjustable stainless steel feet.
• Manufactured in stainless steel, interior AISI 304, exterior AISI 441 (back in treated steel, gray), monocoque frame.
• Stainless steel rack and slides (anti-tilting), allowing to place the grids as ones pleases.
• Stamped interior bottom, rounded angles and corners (without roughness).
• Bottom fitted with a draining tap (high maintenance).
• Glass door (double glazing) with ergonomic handle (no salient) and reversible (predisposition for key lock), "snap-fit" closure by magnetic joint (easy replacement without tools), hinge with stop at 100° and closure of the doors with automatic return.
• Micro-switch device, allowing the ventilator's stop, while opening the door.
• Upper panel for the accessibility of the compressor, on hinges, easy inspection.
• Refrigerated group at "tampon", tropicalized (ambient T° +30°C), and ventilated condenser.
• Ventilated evaporator(s) Evaporator treated against salts and food acids "coating"., completely hidden (non visible).
• Refrigerant expansion by capillary.
• Electronic regulator (under waterproof closed box), control front screen with blue LED.
• Intern lighting, with switch.
• Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
• Condenser's automatic evaporation.
• Polyurethane insulation without CFC (75 mm).
• The equipment is manufactured following the (CE) standards in force.
• Length (mm) 750
• Width (mm) 800
• Height (mm) H2040
• Volume (m3) 1.49
