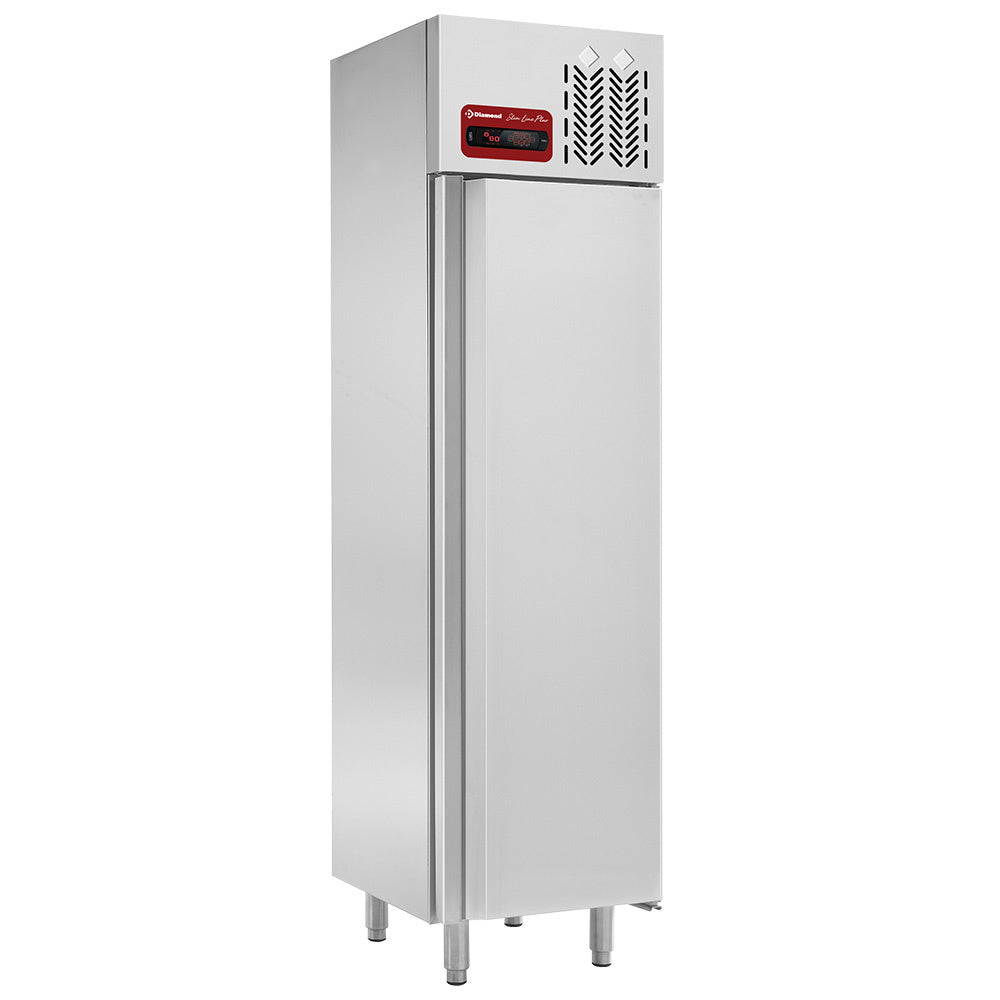

Diamond Blast cooler & cell, GN 1/1 (20kg) - AR5-TN/R2

Product Specification

• " Digital " electronic microprocessor (in closed box, 100% waterproof IP65) programmable at choice (including all HACCP functions), display on the front side
• 4 choices of cycles " Soft Chill " or " Soft Freeze " for sensitive products_backup_1_1, " Hard-Chill " or " Hard-Freeze " for big pieces, control by timer with a bell at the end of the cycle (or) control by core probe, hold function at the end of the cycle and an alarm device (acoustic & visual)
• Stamped inside bottom, angles and rounded corners (without bumps), with draining tap (major maintenance)
• Slides double runners (for grids and GN tray at the same time!!).
• Door with an ergonomic handle (not salient) and reversible (predisposition for key lock ), closure assured by a magnetic seal " with pressure " (easy replacement, without any tools), hinges with stop at 100° and door closing with an automatic alert, storm door equipped with heating element, prevention of frost formation (Fonction Freeze)
• Door with microswitch, allowing to stop the fan of the evaporator while opening the door
• Compressor unit - climatic class 4 (30°C temperature & 55% humidity), incorporated into the piece of furniture (frontal accessibility), ventilated condenser, fan motor IP45
• Ventilated evaporator (oversized), stable to salt and food acids, completely hidden (not visible), fan motor IP45
• Cooling unit R455a
• Manual or automatic defrosting (beginning of the cycle)
• Monoblock structure , use of stainless steel (alimentation), inside (AISI 304) and outside (AISI 304-441)
• Injected polyurethane insulation (without CFC)
• Length (mm) 500
• Width (mm) 700
• Height (mm) 2070
• Volume (m3) 0.88
