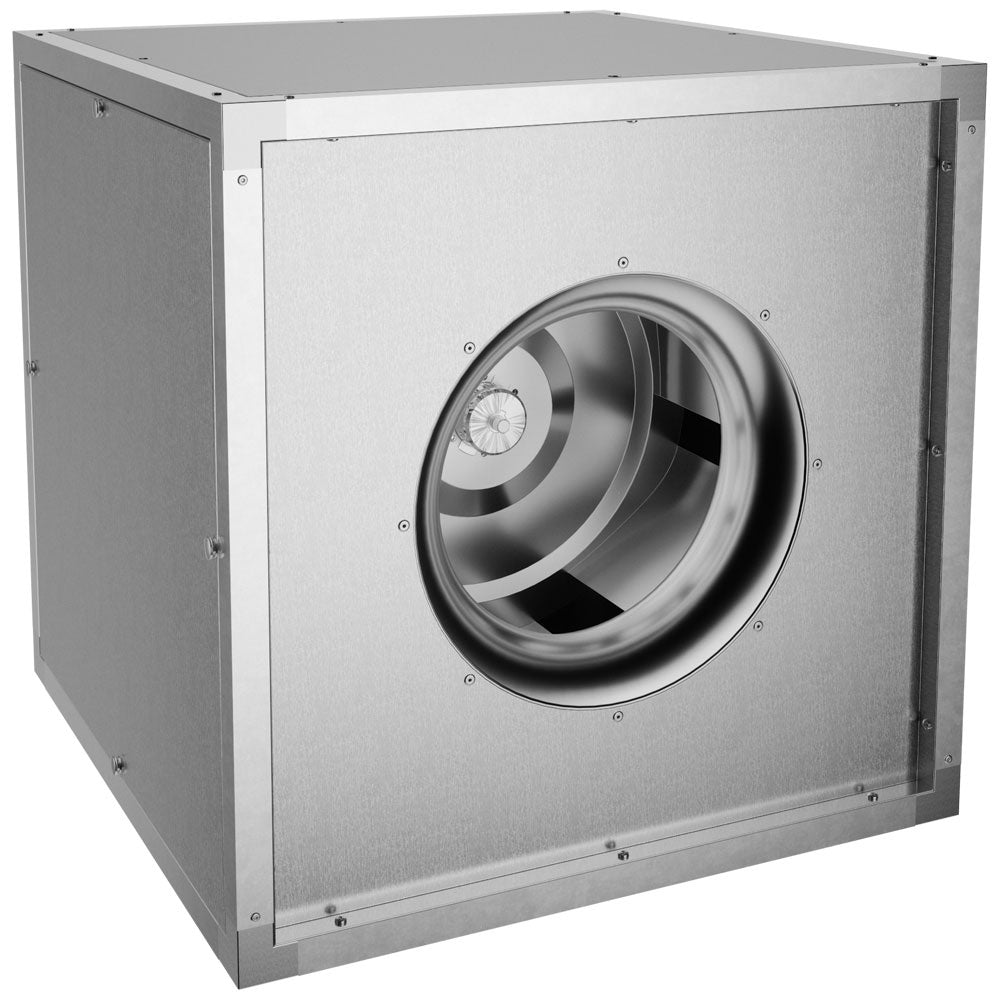

Diamond Centrifugal fan "separated airflow" with insulated casing - CVX/6M
Couldn't load pickup availability
Diamond Centrifugal fan "separated airflow" with insulated casing - CVX/6M is backordered and will ship as soon as it is back in stock.
Description
Description
Product Specification
- Single-Phase Version.
- Pre-cut air inlet with a diameter of 315 mm.
- Airflow: 4200 m³/h (pressure drop: 200 Pa).
- Centrifugal single-inlet ventilation units with built-in motor (operating temperature/resistance: -20° +110°).
- Aluminum profiles and cladding panels made of galvanized "sandwich" type sheets with 20mm acoustic insulation (polyurethane foam).
- Panel with handle for easy access to the impeller for maintenance.
- Open motor access area for after-sales service inspection.
- Closed motor, IP54 protection class, with thermal protection (in a sealed box).
- Impeller with backward-inclined blades.
- Compliant with CE standards and the German DIN 18869 - T1 standard according to VDI 2052.
- Length (mm) 700
- Width (mm) 700
- Height (mm) 700
- Volume (m3) 0.44
