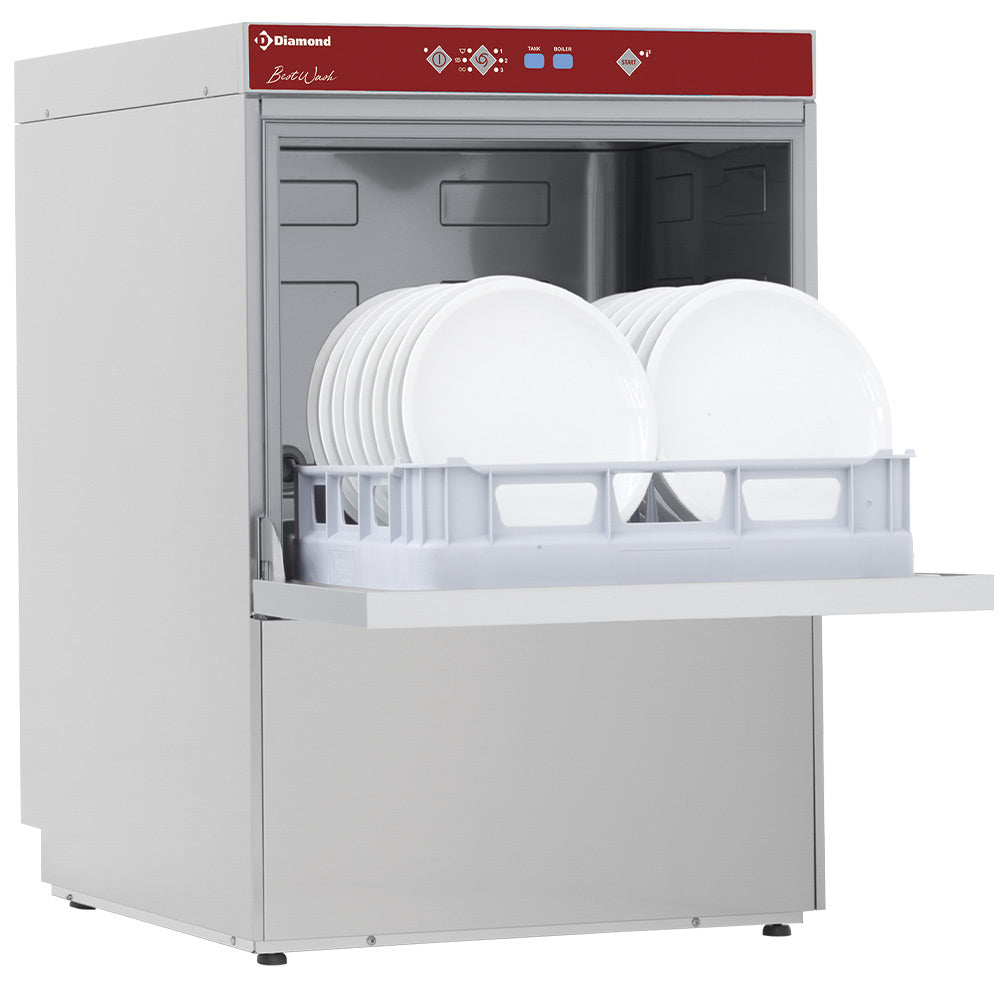

Diamond Dishwasher & utensils, plates 600x400 CROSSOVER - "Full Hygiene" - 04D/6S
Couldn't load pickup availability
Diamond Dishwasher & utensils, plates 600x400 CROSSOVER - "Full Hygiene" - 04D/6S is backordered and will ship as soon as it is back in stock.
Description
Description
Product Specification
- Low version, installation option under sinks and cabinets etc....
- "Double-walled" construction.
- With AB (Break Tank) anti-pollution device, including rinsing pump (atmospheric boiler).
- Load height 405mm.
- Plate height 380mm.
- 3 stages: washing, discharge, rinse.
- Drain pump as standard.
- Rinsing pump as standard (atmospheric boiler).
- Double-walled version completely in stainless steel AISI 304. - From 60 to 24 baskets/hour, 60'' - 120'' - 150" or continuous cycles - Rotating wash and rinsing arms (upper and lower), lower arm in stainless steel - Self-cleaning stainless steel nozzles. -Tank (23L, 2,1kW) with rounded edges and deep-drawn base. Deep-drawn basket guides, no rough edges and no scale build-up. - "Integral" tank filter in stainless steel "cast" -"Patented" filter pump keeps wash water cleaner and at the right temperature. - "Stamped" double walled door, removable door seal, stamped handle. - Removable control panel for easy servicing.
- Automatic discharge function of the water tank, integrated into the control panel (no need to remove the plug manually). Automatic filling of the tank. - Non-return valve - Hot water rinse (2,5L water consumption per cycle), stainless steel boiler (with pressure, 7L, 6/8 kW) - Tank and boiler temperature can be regulated - High-efficiency, energy-saving dual-flow wash pump, with "Soft Start" device - Microswitch, when the door opens. - Safety thermostat. - Supplied with: 2 baskets, 1 basket for plates 500x600, 1 generic basket 500x500, 1 cup.
- NB: inclined structure, for desks (on request).
- Length (mm) 600
- Width (mm) 695
- Height (mm) 850
- Volume (m3) 0.57
