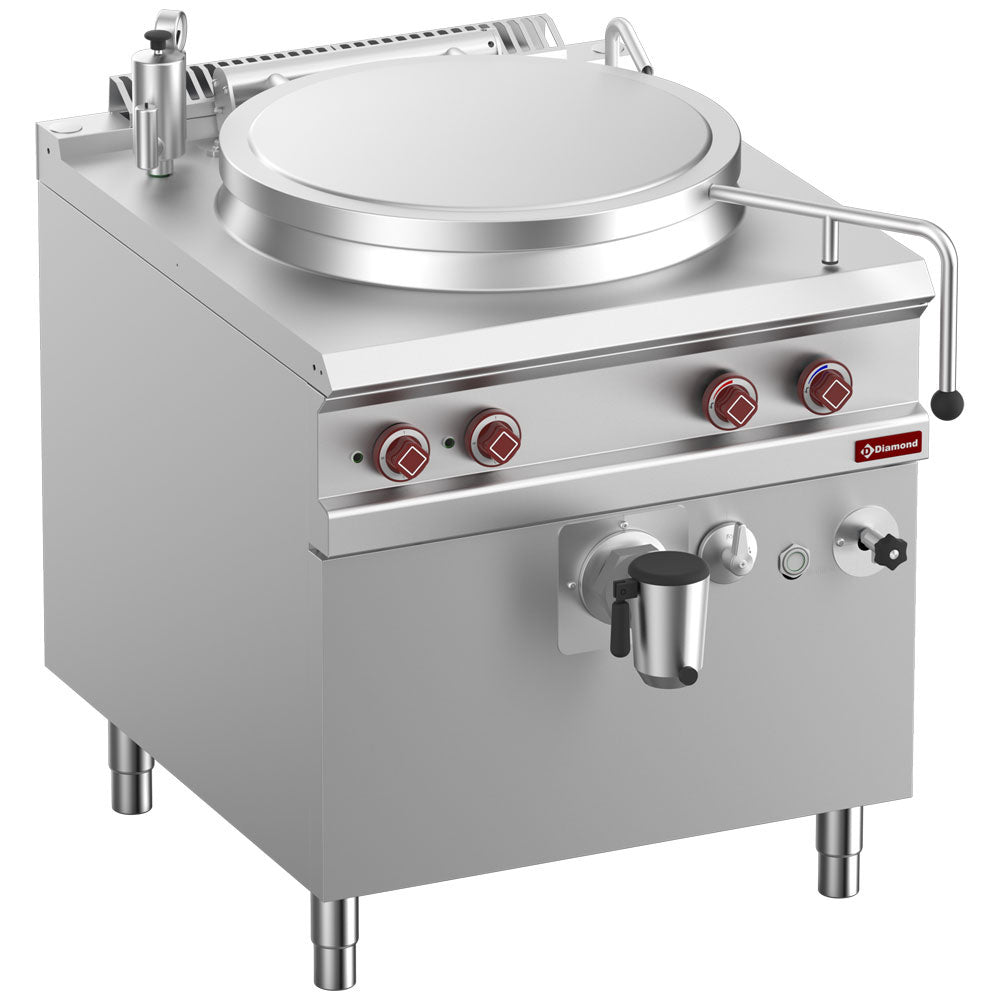

Diamond Electric boiling pan, 100-liter tank, indirect heating, on cupboard - E9/M10I8-N

Product Specification

• Diameter of the tank 600 mm, depth 420 mm.
• Drainage tap 2".
• Made in stainless steel AISI 304, adjustable feet in stainless steel.
• Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.
• Chimney in the back in stainless steel AISI 304.
• "Stamped" tank in stainless steel AISI 304, bottom in stainless steel AISI 316 30/10 mm, side walls in 20/10 mm, resistant to salt corrosion and wear, provided with a removable strainer for protection of the drain valve, corners with rounded interior angles. Water tap for filling up the tank, with the control positioned on the front.
• "Stamped" cover, hinges with "torsion spring" allowing a closing and a gradual opening, provided with an ergonomic handle.
• Indirect heating, double-walled tank, water filling by a tap, a second serving as overflow, monitoring light and drain faucet. Control of the pressure of the double wall at 0.5 bar by pressure switch, safety device with manometer and vacuum valve placed above the top.
• Electric heating by immersion elements in the double wall, regulation by a 4-position switch, frontal accessibility allowing a very easy maintenance.
• Length (mm) 800
• Width (mm) 900
• Height (mm) 850/920
• Volume (m3) 1.1
