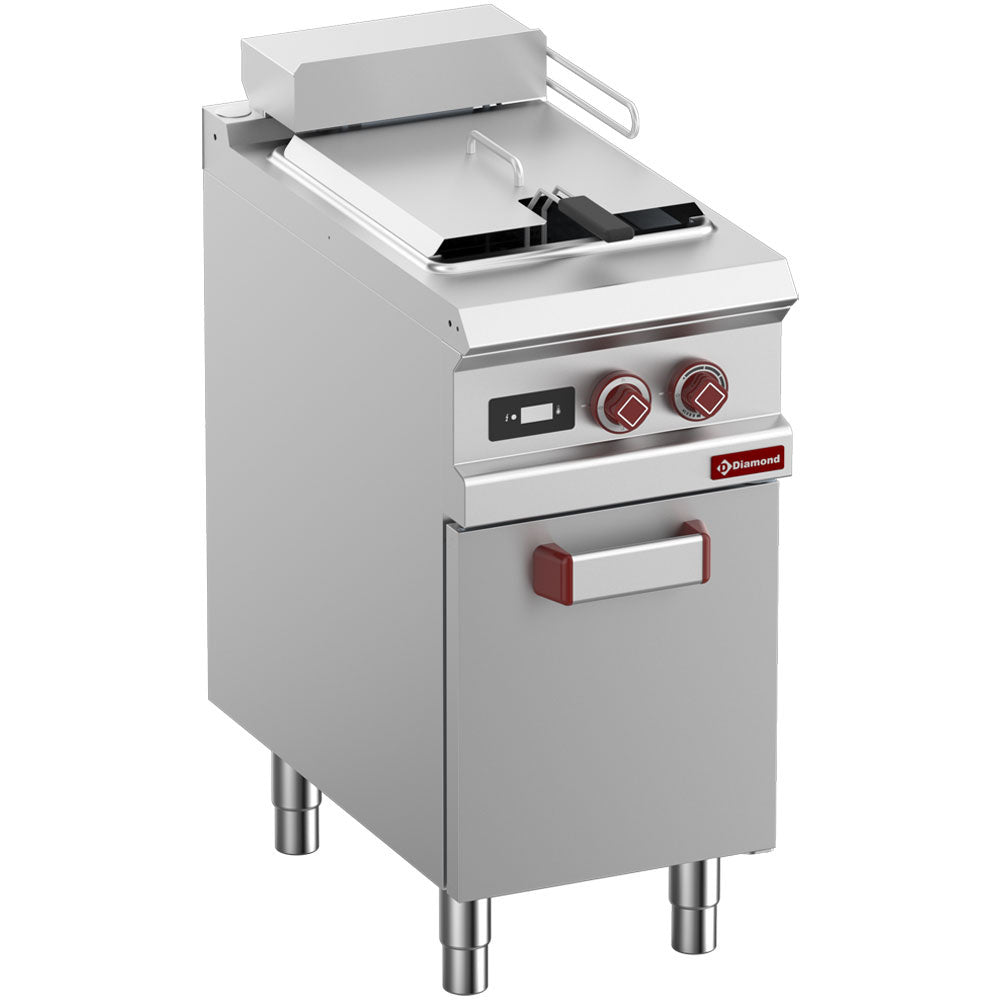

Diamond Electric fryer 1 tank "Y" 15-liter on cupboard - "DIGIT" - E7/F15A4-NAP

Product Specification

• "Y" shaped tank with rounded corners.
• Dimensions tank 310x420xh290 mm.
• Capacity tank, Min. 14 liters, max. 15 liters.
• Wire basket chromed, dimensions 295x290xh130 mm.
• Made of stainless steel AISI 304, stainless steel adjustable feet.
• Watertight top (15/10 mm) in AISI 304 stainless steel, watertight "IPX5".
• Rear chimney in stainless steel AISI 304.
• Deep-drawn" tank in AISI 304 stainless steel with all corners and internal angles rounded, fully welded to the top for easy, hygienic maintenance, complete with cold zone. Stainless steel lid.
• Drain tap (ball valve) for the tank and the oil decanting tray, placed in the lower cabinet.
• Digital programmable control panel. Display of cooking time and temperature. Melting Cycle" function for slow preheating of animal or vegetable fats.
• Electric heating by means of stainless steel armoured resistances immersed in the tank. Lifting of the heating element block for easy cleaning of the tank, temperature regulation from 100° to 190°C by thermostat, safety thermostat as standard, front access for easy maintenance.
• Length (mm) 400
• Width (mm) 700(730)
• Height (mm) 850/920
• Volume (m3) 0.5
