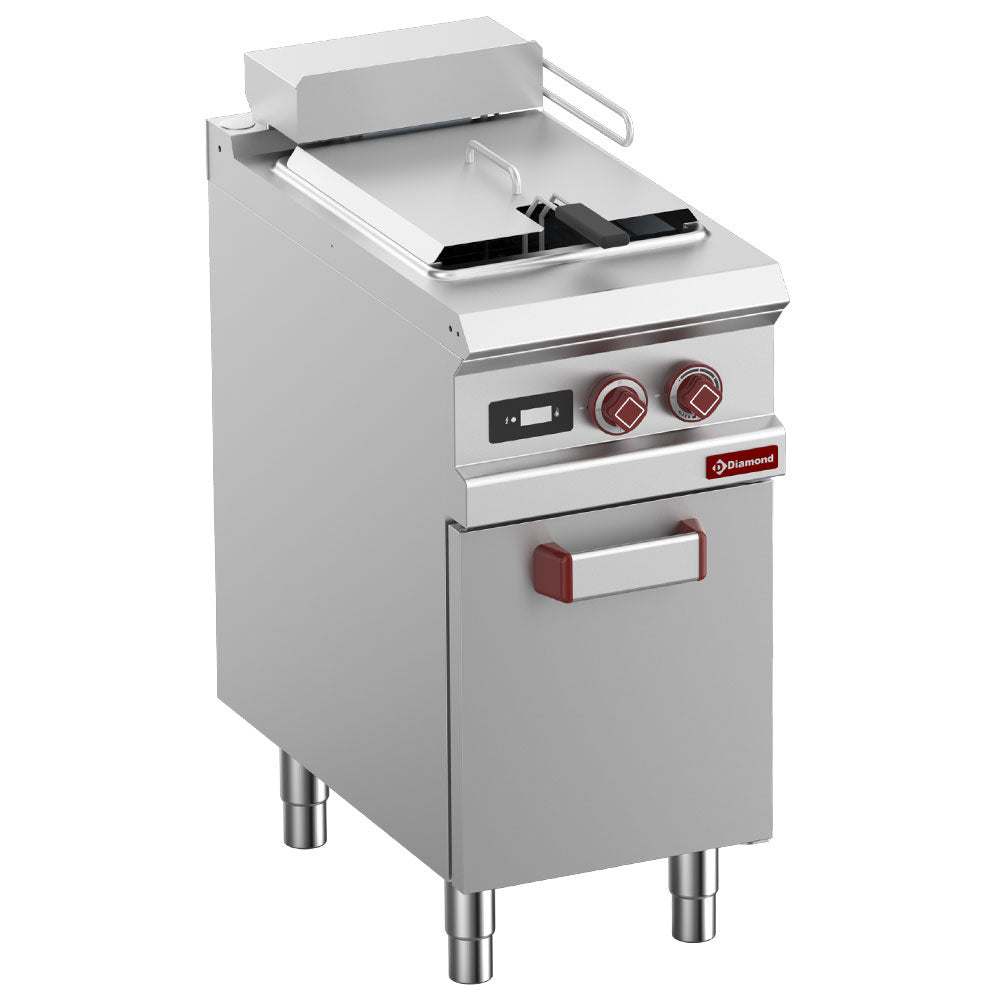

Diamond Electric fryer HP 1 tank "Y" 21 liters on closed cabinet - DIGIT - E9/F21A4-NAP

Product Specification

• Deep-drawn "Y" tank with rounded corners.
• Dimensions of the tank 310x610xh290 mm.
• Quantity of oil in use, min. 20lit. max. 21lit.
• 1 chromed steel basket, dimensions 280x455xh130 mm.
• Made of stainless steel AISI 304, adjustable feet in stainless steel.
• Sealed top (20/10 mm) in AISI 304 stainless steel.
• Rear chimney in stainless steel AISI 304.
• Waterproof "IPX5".
• Deep-drawn tank in AISI 304 stainless steel, rounded inner corners, fully welded to the top for easy, hygienic maintenance, with cold zone, ball drain valve in cabinet. Stainless steel lid. Oil settling tank, located in the lower cabinet.
• Programmable digital control panel. Display of cooking time and temperature. Melting Cycle" function for slow preheating of animal or vegetable fats.
• Electric heating by armored resistors, in stainless steel, immersed in the tank. Lifting resistors allowing an easy cleaning of the tank, regulation from 100°C to 180°C, safety thermostat as standard, frontal accessibility allowing a very easy maintenance.
• Length (mm) 400
• Width (mm) 900
• Height (mm) 850/920
• Volume (m3) 0.5
