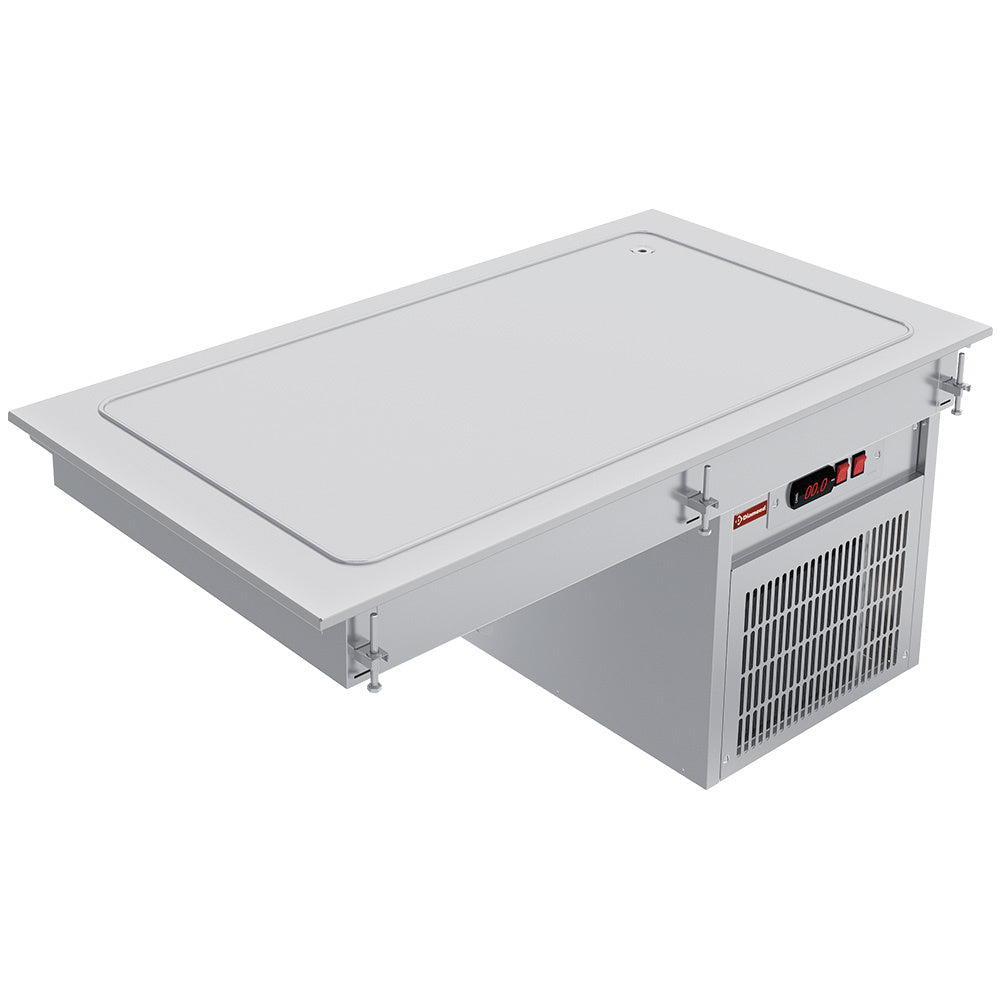

Diamond Refrigerated top element 4x GN 1/1 - IN/RPX15-R9

Product Specification

• Capacity 4x GN 1/1.
• Recessed dimensions 1415x585.
• Flat surface, with a slightly raised peripheral edge, allowing better food exposure.
• Cooling by a coil evaporator (copper), placed just below the plate.
• Drain 1/2"
• Control panel with electronic regulation from 0° +8°, digital display
• CFC-free expanded polyurethane insulation
• Predisposed for the placement of an additional thermometer to display the T° on the customer side (On request)
• Integrated refrigeration unit, refrigerant R290a
• Automatic defrosting, self evaporation of condensate
• Easy mounting thanks to integrated clamps
• Made of AISI 304 stainless steel.
• Length (mm) 1440
• Width (mm) 610
• Height (mm) 476
• Volume (m3) 0.76
