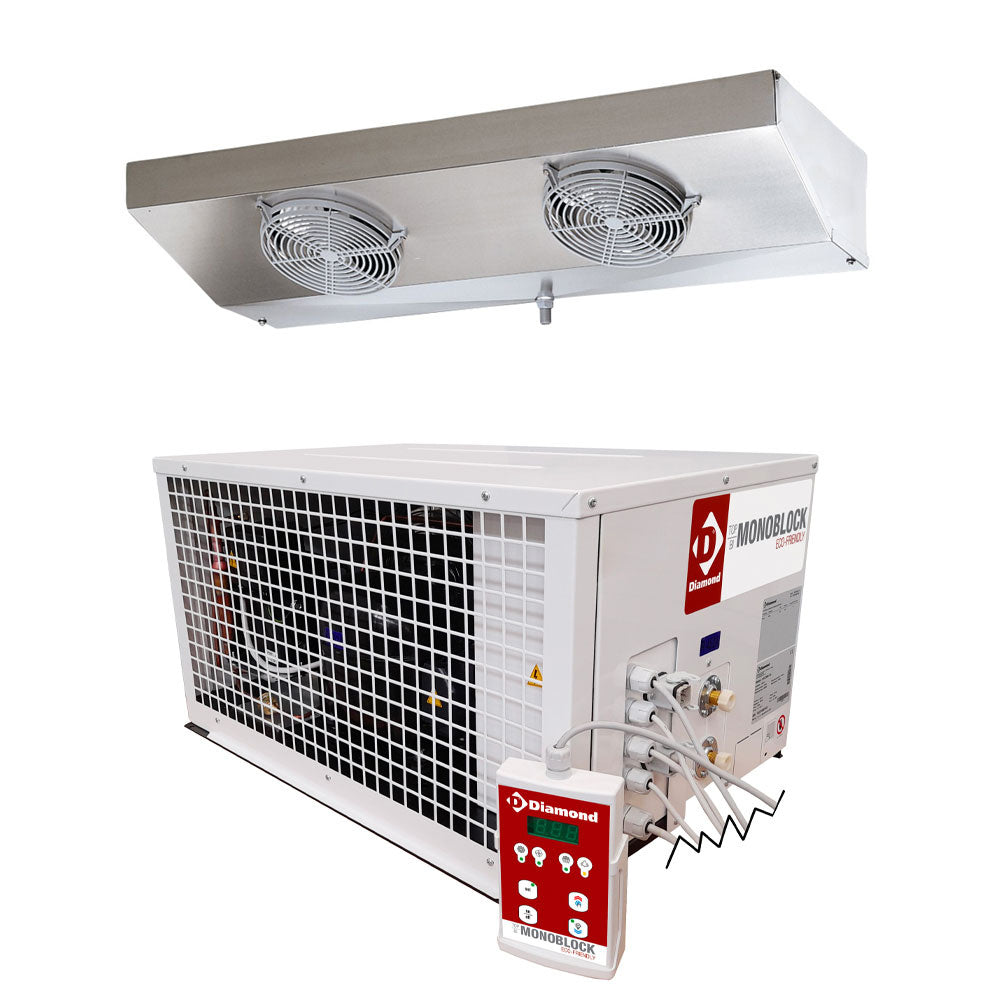

Diamond Refrigerated unit "By-block" T° -5°+5° - HP75M-2P

Product Specification

• Cooling capacity 1800 (W/f) for room volume 14,9 m³ / 14900 Lit (T° internal 0° C & T° external +32° C).
• Refrigerant expansion by capillary.
• Bi-block" refrigeration units.
• Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,...
• Delivered with 2 wall brackets as standard.
• Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
• All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
• Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
• Automatic defrosting by electric resistance, water flow located below the evaporator. The evaporator drain pipe is equipped with a resistance to prevent ice formation.
• Unit certified in climatic class 5 (40°C Temperature - 40% Humidity).
• Refrigerant gas R452a.
• Window lights delivered as standard with micro-switch for door.
• Length (mm) 700&1106
• Width (mm) 490&433
• Height (mm) 380&188
• Volume (m3) 0.79
