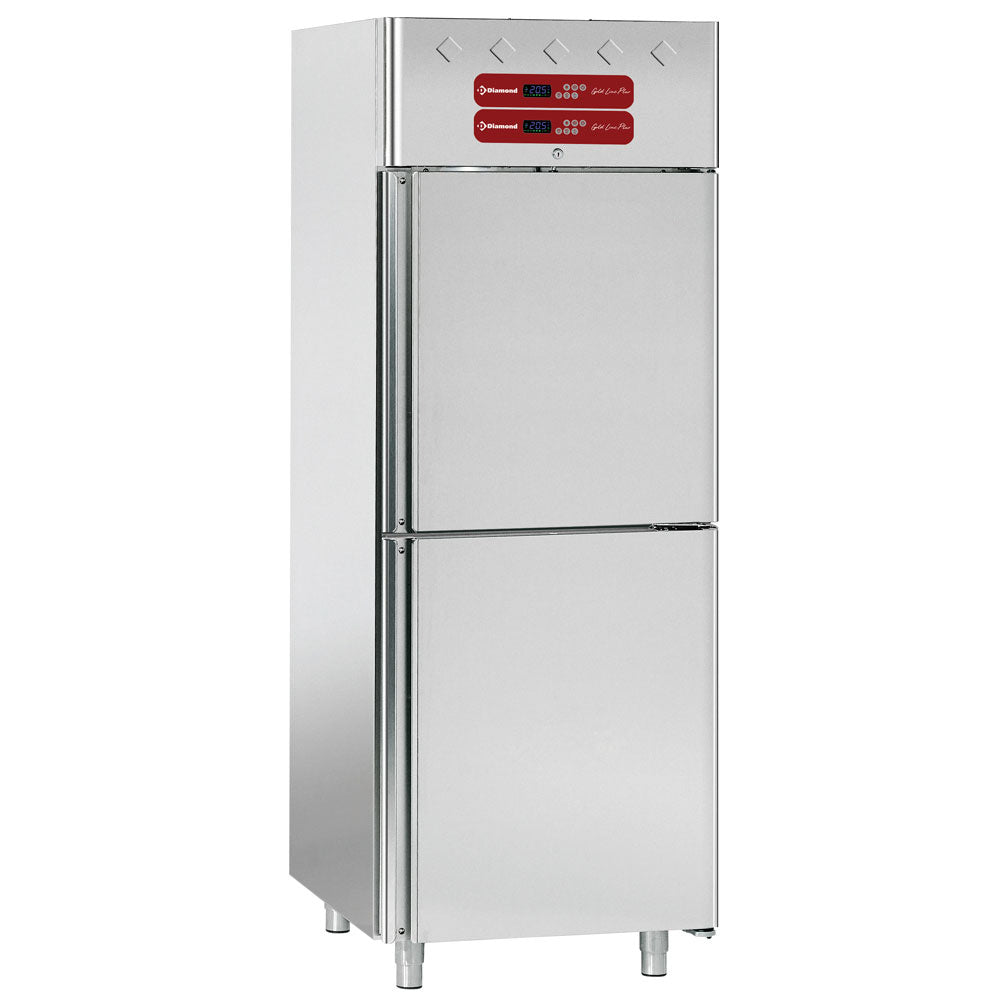

Diamond Refrigerator and fish refrigerator 2x350 liters, 2x 1/2 doors GN 2/1 & 1/1 - AF2T/L2-SH/R

Product Specification

• 2 compressor groups and 2 evaporators, independent.
• Included: 2 grids GN 2/1 (530x650 mm) + 4 trays GN1/1-100 mm in polycarbonate, with double perforated bottom in stainless steel (fish).
• Fish refrigerator: evaporator at copper coil, embedded in the walls (3 sides), manual defrost, with water collecting tray, bottom fitted with a draining tap.
• 4 adjustable stainless steel feet.
• Manufactured in stainless steel, inside and outside in AISI 304 (back in galvanized steel), monocoque chassis.
• Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases, stamped interior bottom, rounded angles and corners (without roughness).
• Doors with ergonomic handle (no salient) and reversible, "snap-fit" closure by magnetic joint (easy replacement without tools), hinges with stop at 100° and closure of the doors with automatic recall.
• Micro-switch device, allowing the ventilator's stop, while opening the door.
• Standard delivered with key lock.
• Upper panel for the accessibility of the compressor, on hinges, easy inspection.
• Tropicalized compressor group (ambient T° +43°C), ventilated condenser.
• Over-sized evaporator(s), ventilated or static), treated against the salt and the food acids "coating", completely hidden (non apparent).
• Refrigerant expansion R404A by capillary.
• "Digital" electronic microprocessor (under closed box, 100% waterproof) with HACCP functions, front screen control with blue LED.
• Intern lighting with switch.
• Automatic defrosting of the evaporator (by warm gas), number of defrosts programmed by factory (modifiable at will).
• Condenser's automatic defrost (by warm gas).
• Polyurethane insulation without CFC (75 mm = super insulated).
• The equipment is manufactured following the (CE) standards in force.
• Length (mm) 770
• Width (mm) 820
• Height (mm) H2025
