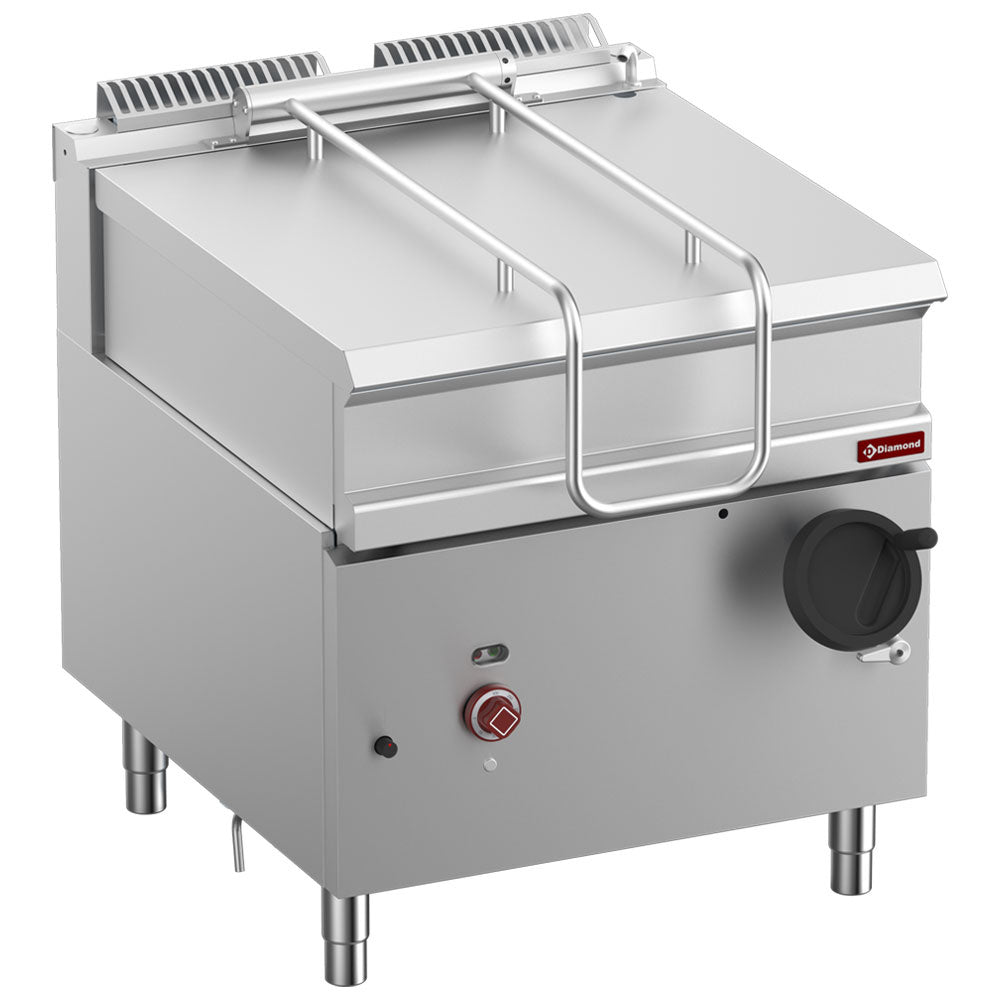

Diamond Tilting gas bratt pan, stainless steel tank 80 liters, on cupboard - G9/BRI8-N

Product Specification

• Tank dim. 790x690xh200 mm, surface 50dm2.
• Tilting of the tank by a handwheel.
• Made in stainless steel AISI 304, adjustable feet in stainless steel.
• Top (20/10 mm) in stainless steel AISI 304.
• Chimney in the back in stainless steel AISI 304.
• The "stamped" cover of the tank is on hinges with "torsion spring" in stainless steel, allowing a gradual closing and opening, provided with an ergonomic front handle.
• Tilting tank made of stainless steel AISI 304 thickness (13 mm) with high thermal conductivity, corners with rounded interior angles for easy and hygienic maintenance.
• Gas heating, by burners in stainless steel with stabilized flame, regulation from 90 to 300°C (uniform temperature on the bottom of the tank), ignition for pilot light and safety system by thermocouple, piezo-mecanics device, frontal accessibility allowing a very easy maintenance.
• Safety device for interruption of operation during the ascent of the series tank. A water tap to fill the tank is attached to the upper top, the opening is done by a valve positioned on the front of the device.
• Length (mm) 800
• Width (mm) 900
• Height (mm) 850/920
• Volume (m3) 1.1
