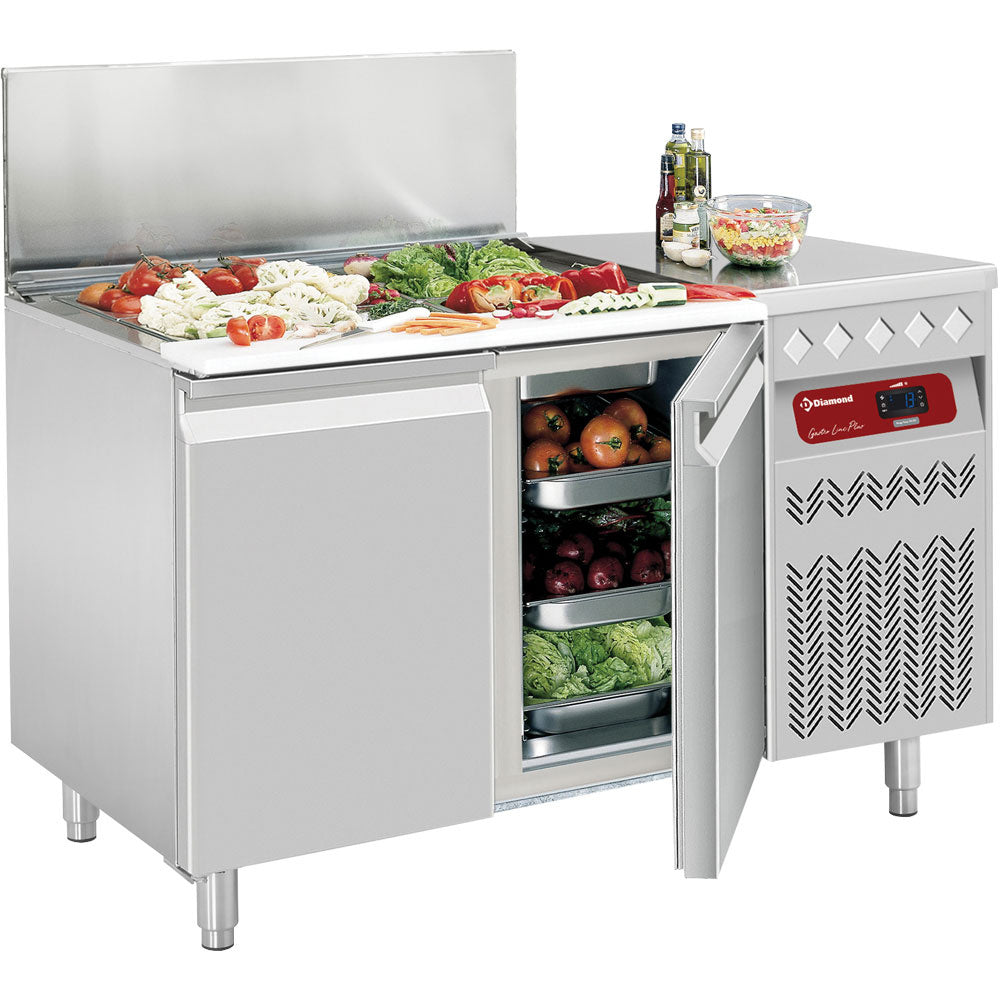

Diamond Ventilated cooling table, 2 doors GN 1/1, 260 Lit. with refrigerated structure - SG2-G3/P9

Product Specification

• Saladette capacity GN 1 x 1/1, 2 x 1/2, 3 x 1/9, h150 mm (optional vats).
• Telescopic and flip-top cover in stainless steel.
• Shelf in polyethylene (food).
• 1 ventilated eveporator.
• With: 1 grid GN 1/1 (530x325 mm), per door.
• 4 adjustable stainless steel feet.
• Monocoque design
• Internal construction in stainless steel (Food) AISI 304, external AISI 441.
• Top in AISI 304 stainless steel.
• Built-in upper refrigerated structure with a cover.
• Racks and slides in stainless steel (anti-tilt), allowing the grids to be positioned as desired.
• Deep-drawn inner bottom and rounded corners and angles (without roughness).
• Doors with ergonomic handle (reversible, no Kit required), closing by magnetic "pressure" seal (easy replacement, no tools required), hinges with 100° stop and door closing with automatic return.
• Compressor unit Climate class 5 (40°C Temperature & 40% Humidity), built into the cabinet (right), ventilated condenser..
• Front accessibility of the compressor unit, easy inspection.
• Ventilated (or) static (87% relative humidity) (oversized) evaporator(s), positioned between the doors.
• Refrigerant R290.
• Electronic regulator (in closed, waterproof box), control screen on the front panel with blue LED.
• Automatic defrosting of the evaporator, number of defrostings factory program (can be modified as required).
• Automatic evaporation of condensate.
• CFC-free polyurethane insulation (60 mm).
• Length (mm) 1330
• Width (mm) 700
• Height (mm) 866/960(+275)
• Volume (m3) 1.11
