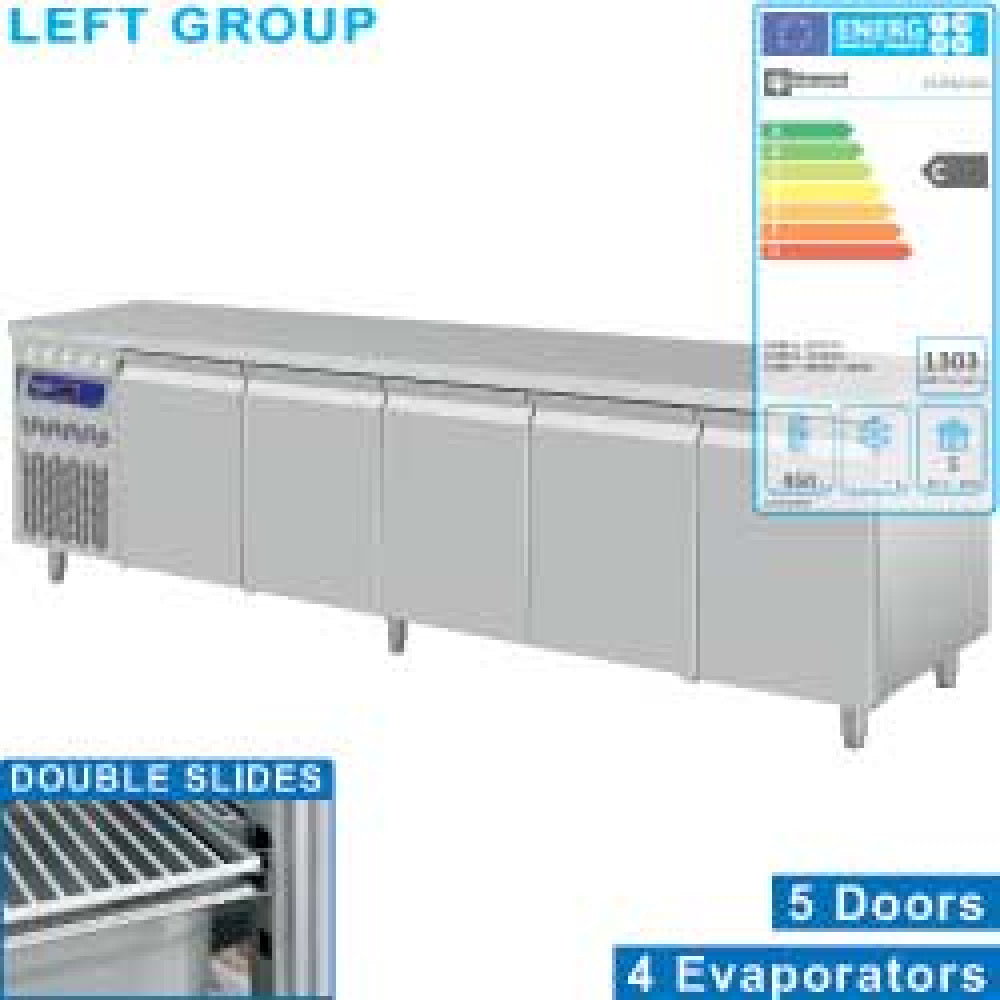

Diamond Ventilated cooling table, 5 doors GN 1/1, group on the left - DT274/ELGX

Product Specification

• Refrigeration unit on the left side.
• 4 ventilated evaporators.
• Included: 1 grid GN 1/1 (530x325 mm), by door.
• 6 adjustable stainless steel feet.
• Inside manufactured in stainless steel (food), AISI 304, outside AISI 441.
• Independent upper top (dismountable), stainless steel AISI 304.
• Stainless steel racks and slides (anti-tilting), allowing to place the grids as one pleases.
• Stamped interior bottom, rounded angles and corners (without rougness).
• Doors with ergonomic handle (no salient) and reversible (kit not necessary), "snap-fit" closure by magnetic joint (easy replacement without tools.
• Tropicalized compressor group (ambient T° +43°C), built-in the (right) board, ventilated condenser.
• Frontal accessibility of the compressor group, easy inspection.
• (Over-sized) evaporator(s), ventilated (or) static (87% of relative humidity), placed between the doors.
• Refrigerated expansion R134A by capillary.
• Electronic regulator (under closed box, warterproof), control front screen with blue LED.
• Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable as one pleases).
• Condenser's automatic evaporation.
• Polyurethane insulation without CFC (50 mm).
• Equipment manufactured following the (CE) standards in force.
• Length (mm) 2625
• Width (mm) 700
• Height (mm) H850/900
• Volume (m3) 2.2
