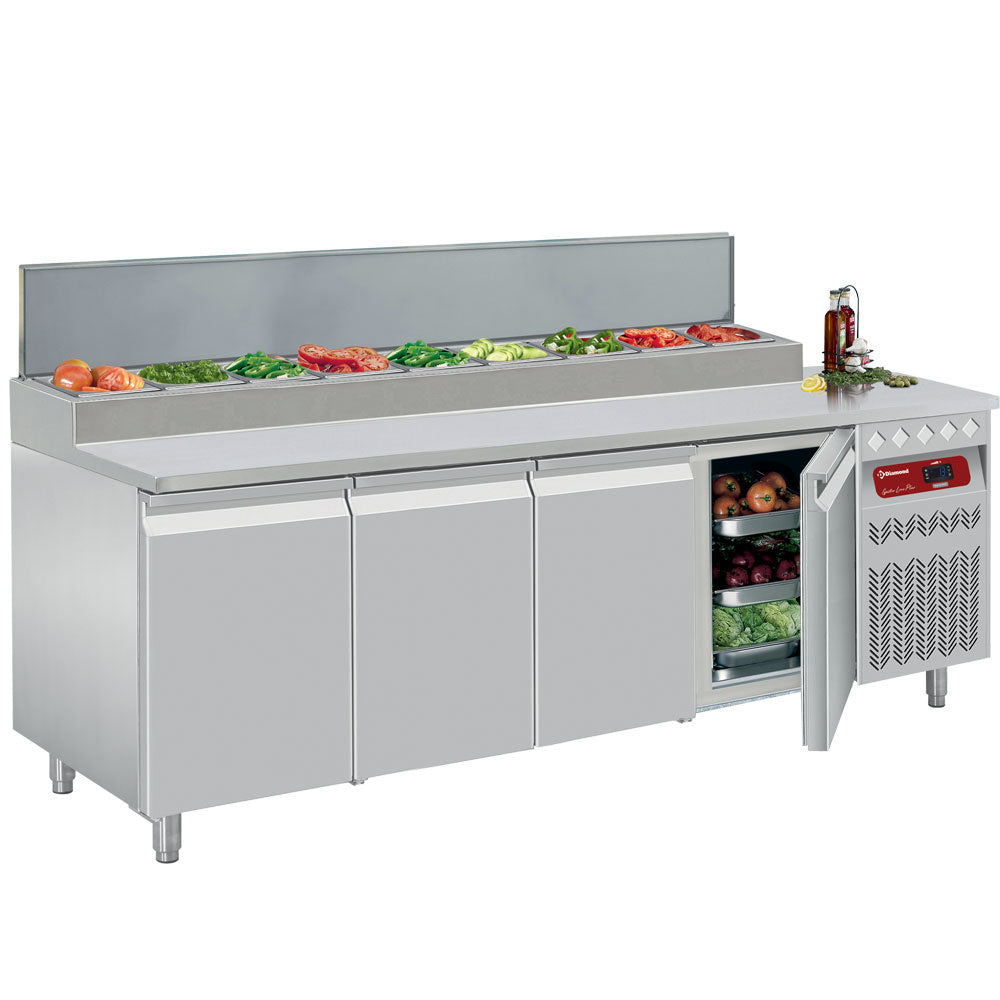

Diamond Ventilated refrigerated table, 4 doors GN 1/1, 550 Lit.& refrigerated structure - DTS-10/P9

Product Specification

• Capacity of the structure 10x GN 1/6 (trays in option).
• 2 ventilated evaporators.
• Included: 1 grid GN 1/1 (530x325 mm), by door.
• 6 adjustable stainless steel feet.
• Monocoque design
• Manufactured in stainless steel, inside AISI 304 (food), outside AISI 441.
• Top in stainless steel AISI 304.
• Built-in refrigerated upper structure, fitted with a cover.
• Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases.
• Stamped interior bottom, rounded angles and corners (without roughness).
• Doors with ergonomic handle (no salient) and reversible (kit is not necessary), "snap-fit" closure by magnetic joint (easy replacement without tools), hinge with stop at 100° and closure of the doors with automatic return.
• Compressor unit climate class 4 (30°C Temperature & 55% Humidity), ), built into the cabinet (right), ventilated condenser.
• Frontal accessibility of the compressor group, easy inspection.
• Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
• Refrigerant R290.
• Electronic regulator (under closed box, waterproof), control front screen with blue LED.
• Intern lighting, with switch.
• Automatic defrosting of the evaporator, number of defrosting programmed by the factory (modifiable at will).
• Condenser's automatic evaporation.
• Polyurethane insulation without CFC (60 mm).
• Length (mm) 2260
• Width (mm) 700
• Height (mm) 866/960-1210
• Volume (m3) 1.96
