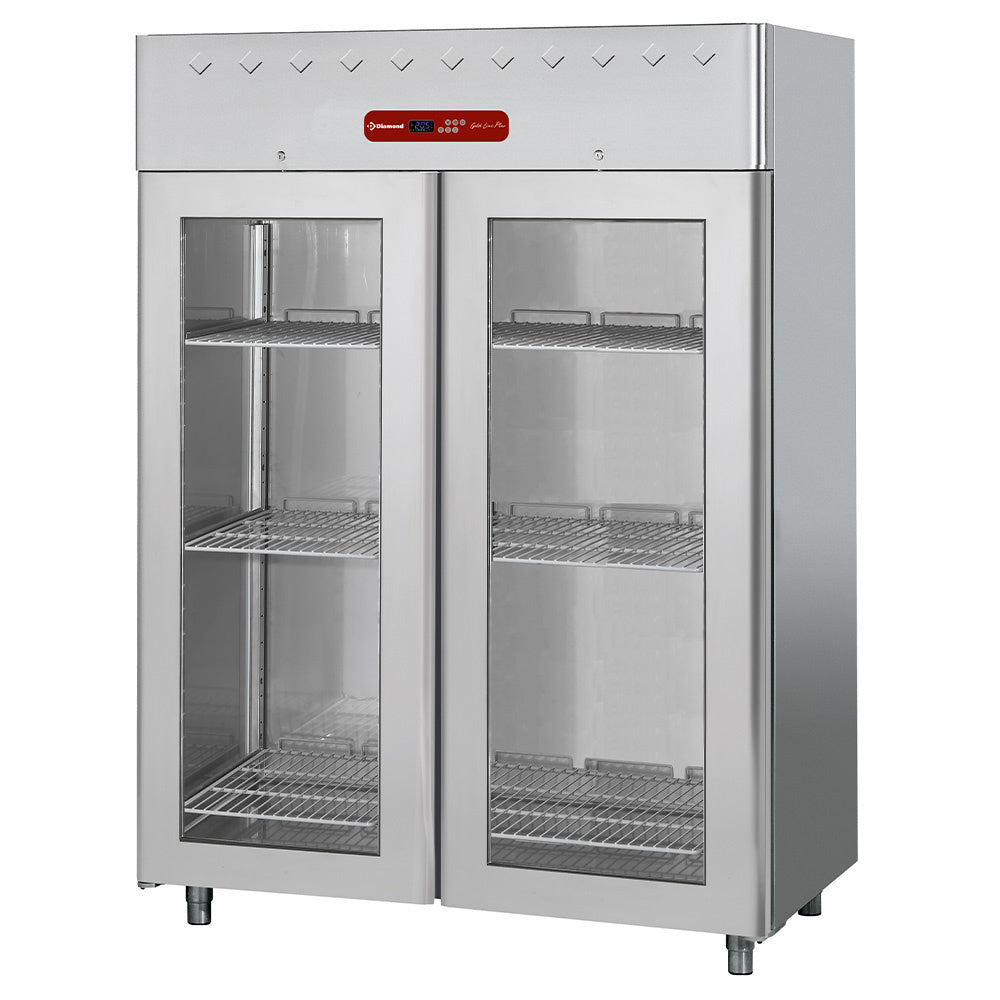

Diamond Ventilated refrigerator 1400 liters, 2 glass doors GN 2/1 - AD2N/H2G-R2

Product Specification

• "Thermopane" glass door, with anodized aluminum frame.
• Included: 3 grids GN 2/1 (530x650 mm).
• 4 adjustable stainless steel feet.
• Refrigerant gas R290.
• Interior and exterior made of stainless steel (food grade) AISI 304 (rear galvanized steel), monocoque frame
• Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
• Glass door (double glazing) with stainless steel frame, ergonomic handle, reversible, locking by means of "triple chamber" and magnetic seal (easy replacement, without tools), hinges with 100° stop, locking with automatic return (audible and visual alarm device for "open door").
• Microswitch device, allowing the evaporator fan to stop when the door is opened
• Standard with key lock
• Upper panel for accessibility to the compressor unit, hinged, easy inspection
• Compressor unit (ambient temperature +43°), ventilated condenser.
• Ventilated evaporator (oversized), treated against salt and food acids "coating", completely hidden (not visible)
• Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
• Internal lighting by neon TL, with switch
• Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
• Automatic condensate evaporation (hot gas)
• CFC-free polyurethane insulation (85 mm = super-insulated)
• The device is built in compliance with all applicable standards (CE).
• Length (mm) 1540
• Width (mm) 820
• Height (mm) 2025
• Volume (m3) 2.9
