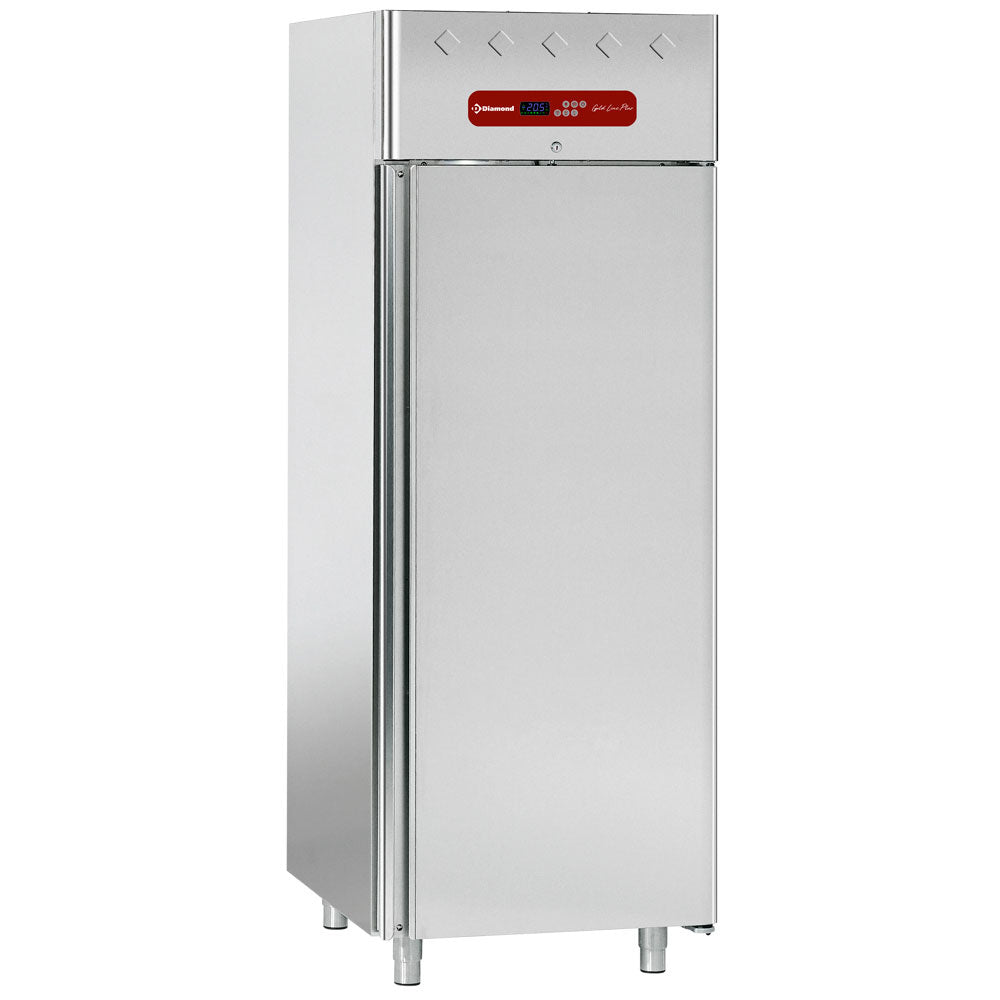

Diamond Ventilated refrigerator 700 liters, 1 door GN 2/1 - AD1N/H-R2

Product Specification

• Included: 3 grids GN 2/1 (530x650 mm).
• 4 adjustable stainless steel feet.
• Refrigerant gas R290.
• Interior and exterior made of stainless steel (food grade) AISI 304 (rear galvanized steel), monocoque frame
• Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
• Doors with ergonomic (not protruding) and reversible handle, closing by "triple chamber" and magnetic seal (easy replacement, without tools), hinges with 100° stop, closing with automatic return (audible and visual alarm device for "open door")
• Microswitch device, allowing the evaporator fan to stop when the door is opened
• Standard with key lock
• Upper panel for accessibility to the compressor unit, hinged, easy inspection
• Tropicalized compressor unit (ambient temperature +43°), ventilated condenser.
• Ventilated evaporator (oversized), treated against salt and food acids "coating", completely hidden (not visible)
• Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
• Internal lighting, with switch
• Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
• Automatic condensate evaporation (hot gas)
• CFC-free polyurethane insulation (85 mm = super-insulated)
• The device is built in compliance with all applicable standards (CE).
• Length (mm) 770
• Width (mm) 820
• Height (mm) 2025
• Volume (m3) 1.5
