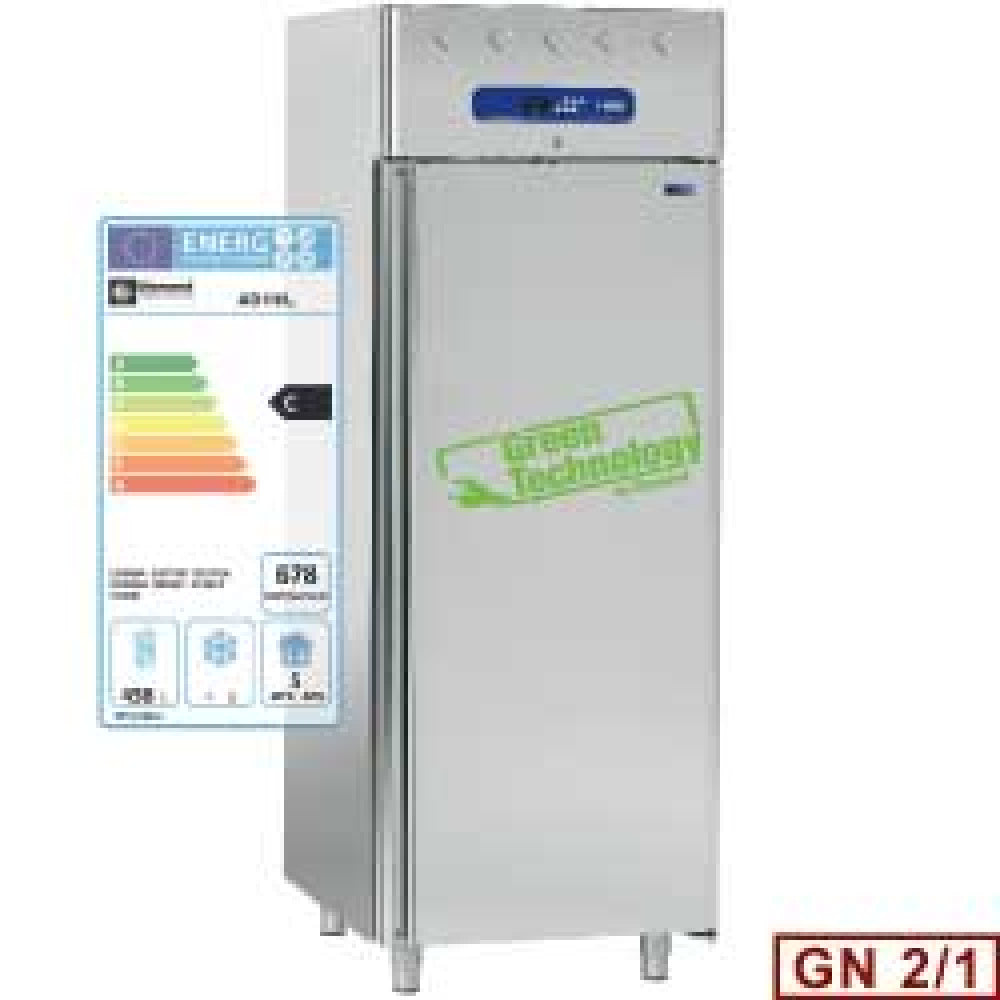

Diamond Ventilated refrigerator 700 liters, 1 door GN 2/1 - AD1N/L

Product Specification

• Included: 3 grids GN 2/1 (530x650 mm).
• 4 adjustable stainless steel feet.
• Manufactured in stainless steel, inside and outside in AISI 304 (back in galvanized steel), monocoque frame.
• Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases, stamped interior bottom, rounded angles and corners (without roughness).
• Doors with ergonomic handle (no salient) and reversible, "snap-fit" closure by magnetic joint (easy replacement without tools), hinges with stop at 100° and closure of the doors with automatic recall, (audible and visual alarm device when "opens the door").
• Micro-switch device, allowing the ventilator's stop, while opening the door.
• Standard delivered with key lock.
• Upper panel for the accessibility of the compressor, on hinges, easy inspection.
• Tropicalized compressor group (ambient T° +43°C), ventilated condenser.
• Over-sized evaporator(s), ventilated or static), treated against the salt and the "coating" food acids, completely hidden (non apparent).
• Refrigerant expansion R404A by capillary.
• "Digital" electronic microprocessor (under closed box, 100% waterproof) with HACCP functions, front screen control with blue LED.
• Intern lighting with switch.
• Automatic defrosting of the evaporator (by warm gas), number of defrosting programmed by factory (modifiable at will).
• Condenser's automatic evaporation (by warm gas).
• Polyurethane insulation without CFC (75 mm = super insulated).
• The equipment is manufactured following the (CE) standards in force.
• Length (mm) 750
• Width (mm) 820
• Height (mm) H2025
• Volume (m3) 1.5
