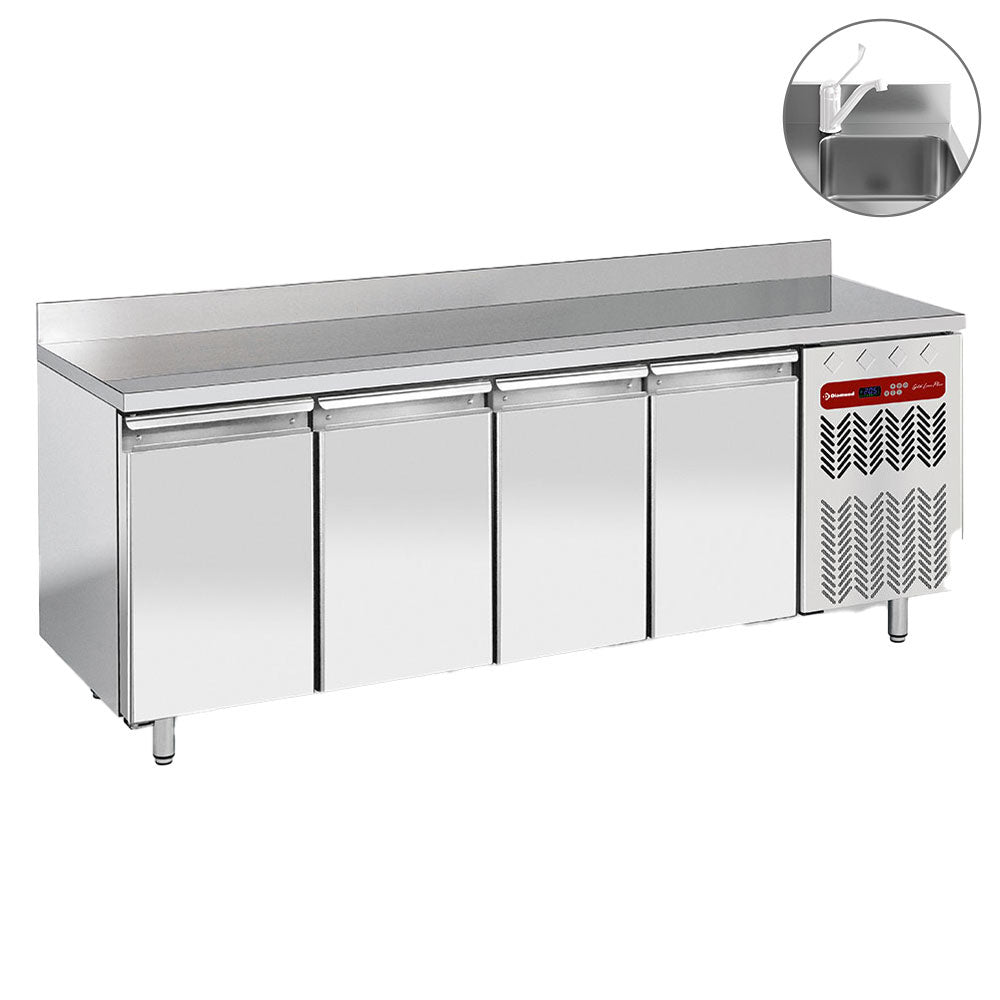

Diamond Ventilated "wall' cooling table, ventilated, 4 doors GN 1/1, with sink - TG4N/HA-R2EV

Product Specification

• Sink 300x330xh200 mm built into the top (on the right), equipped with a trap, strainer, and overflow drain (NB faucet on request, hole on the top (33 mm)
• "Wall-mounted" version with raised back edge
• Included: 1 GN1/1 grid (530x325mm), per door
• 6 adjustable stainless steel legs.
• Installation possible on a base.
•
• Interior and exterior made of food-grade AISI 304 stainless steel, monocoque chassis
• Independent (removable) top made of food-grade AISI 304 stainless steel
• Stainless steel (anti-tilt) racks and slides, allowing for flexible positioning of grids, with stamped interior bottom and rounded angles and corners (smooth surfaces)
• Doors with ergonomic (non-protruding) and reversible handles (see Kit TKDX-H or TKSX-H), closure ensured by "triple-chamber" gasket and "pressure" magnetic seal (easy replacement, no tools required), hinges (frontal attachment) with 100° stop, self-closing feature
• Frontal accessibility to the compressor unit, easy inspection
• Compressor unit in climate class 5 (40°C Temperature - 40% Humidity), built into the cabinet (on the right), ventilated condenser.
• Ventilated (oversized) evaporator (side-mounted), treated against salt and food acids with a "coating," completely concealed (not visible)
• Refrigerant R290.
• Electronic "digital" microprocessor (in a closed box, 100% waterproof), with HACCP functions, front control screen with blue LED
• Automatic defrosting of the evaporator (hot gas), number of factory-programmed defrost cycles (modifiable as desired)
• Automatic evaporation of condensate (with hot gas)
• CFC-free polyurethane insulation (60 mm)
• Appliance built in compliance with all current CE regulations.
• Length (mm) 2250
• Width (mm) 700
• Height (mm) 880/900(+85)
• Volume (m3) 1.76
