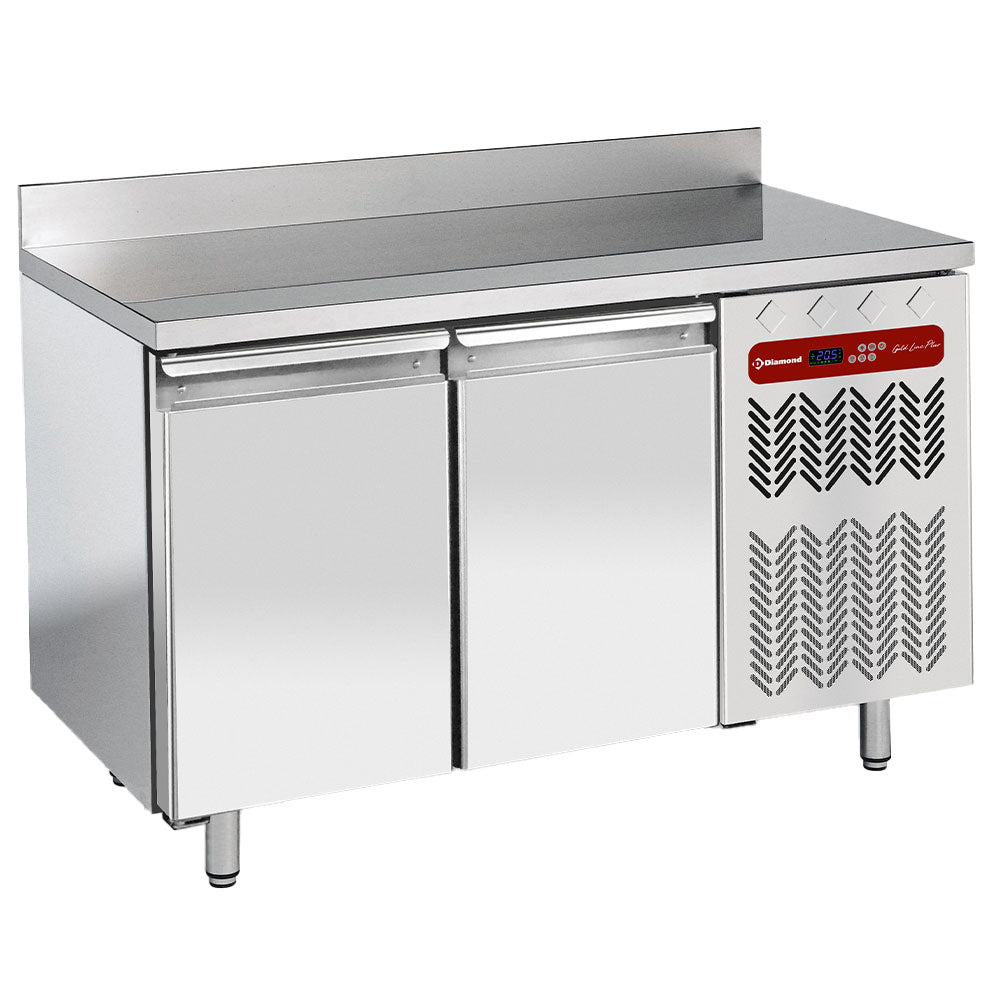

Diamond Wall-mounted cooling table, ventilated, 2 doors GN 1/1, 260 litres - TG2N/HA-R2

Product Specification

• Wall-mounted version with raised rear edge
• Included: 1 grid GN1/1 (530x325mm), per door
• 4 adjustable stainless steel feet.
• Can be installed on a base.
• Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
• Independent top (removable), in stainless steel (food grade) AISI 304
• Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
• Doors with ergonomic (not protruding) and reversible handle (see Kit TKDX-H or TKSX-H), closing by "triple chamber" and magnetic "pressure" seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return
• Front access to compressor unit, easy inspection
• Compressor unit in climate class 5 (40°C Temperature - 40% Humidity, incorporated in the cabinet (right), ventilated condenser.
• Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
• Refrigerant gas R290.
• Digital" electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
• Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
• Automatic condensate evaporation (hot gas)
• CFC-free polyurethane insulation (60 mm)
• The device is built in compliance with all applicable standards (CE).
• Length (mm) 1355
• Width (mm) 700
• Height (mm) 880/900 (+85)
• Volume (m3) 1.07
